NDAA Compliant NVR	Dual Gigabit Ethernet Ports	H.265/H.264 Video Compression	Supports Face Comparison, LPR, VCA, & Smart Features

UNV Pro Series NVR - 64 Channels | Ultra H.265 Support | Dual LAN Inputs | RAID | True Multi Screen

All "IQ" NVRs support Face Comparison using Face Capture IP Cameras

This model is a significant increase in processing and decoding power from previous models - designed for dealers who want to best hardware to ensure a smooth end-user operation. This model supports multiple type of RAID for data redundancy through its integrated 8 hard drive bays. Additionally, it works excellent for applications that require multiple monitors streaming live views of the connected cameras through its independent HDMI and VGA video outputs.

This NVR supports both UMD (Ultra Motion Detection) & SIP (Smart Intrusion Protection).

UMD allows the NVR to only trigger recording when the camera detects a human, vehicle, or both - this is used to reduce the recording of standard motion events such as shadows, plants, animals, and so on.

SIP recording is used for line crossing, intrusion boxes, and enter/exit area alerts. The total number of enable channel has been increased on this model and can be used with any camera from Uniview. Specifically it supports Face Detection, Face Comparison, Human Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection(UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, and Traffic Monitoring. These features may require a specialized cameras to function - please call us to ensure that you will have the features you are looking for,

It also supports dual lens camera, dual lens PTZ, and fisheye cameras.

Support Ultra 265/H.265/H.264 video formats
64‑channel input / 384Mbps bandwidth
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
Up to 32 Megapixels resolution recording
Support N+1 Hot spare
Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
Redundant power supply optional
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

	National Defense Authorization Act or NDAA was modified to restrict the "use" of certain brands, and their OEMs, when dealing with the federal government and went into full effect August 2020. Use of restricted products affects government contractors even on their own security systems on their private property. Recently, the FCC has followed suit and also banned those same manufacturers. This product is made with 100% NDAA compliant parts.
	This NVR has dual ethernet LAN ports, primarly LAN port 1 is the main network and LAN 2 is used with PoE switches to connect all of the cameras. Uniview IP cameras are designed to be Plug-N-Play through the search function on this NVR.
	Ultra H.265 technology is designed to use less hard drive space and bandwidth. Powered by U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction. It is not only a compression technology, but a cutting edge end-to-end solution.
	Supports VCA and Smart features such as line-crossing, intrusion detection, human/vehicle detection, and ultra motion detection. These modes are designed to eliminate false alerts to allow you to stay informed by true push-notifications. Supports LPR cameras and fisheye dewarping.
	Extreme decoding ability means being able to playback more channels at one time during surveillance footage review. 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF 384Mbps Incoming Bandwidth 384Mbps Outgoing Bandwidth
	Supports audio recording when connected to Uniview cameras with built-in microphones. Uniview makes it easy to either enable or disable audio in the camera setup menu

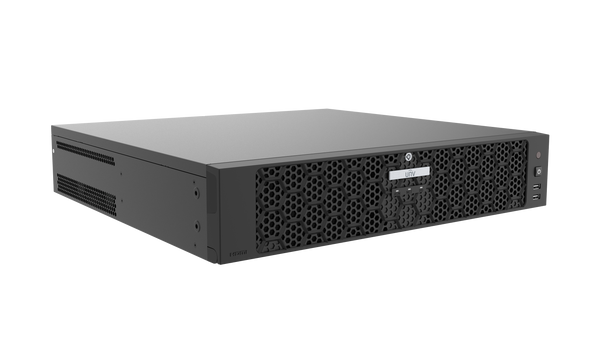

NVR Pro Network Video Recorder | 64 Ch | 8x SATA | Dual LAN | SKU: NVR508-64E-R-IQ
