In the traditional security industry, the conventional IP cameras face multiple challenges:
UNV Tri-Guard technology integrates Smart Intrusion Prevention (SIP) , ColorHunter and Active Deterrence. It’s designed to prevent crimes at night - It can not only alert you when events happen, but also get full color information in low-light environment. |
|
Smart intrusion prevention (SIP)
|
 |
|
ColorHunterSmart LED: automatic intensity adjustment prevents overexposure.
|
|
|
 |
||
2-Way Audio:
|
||

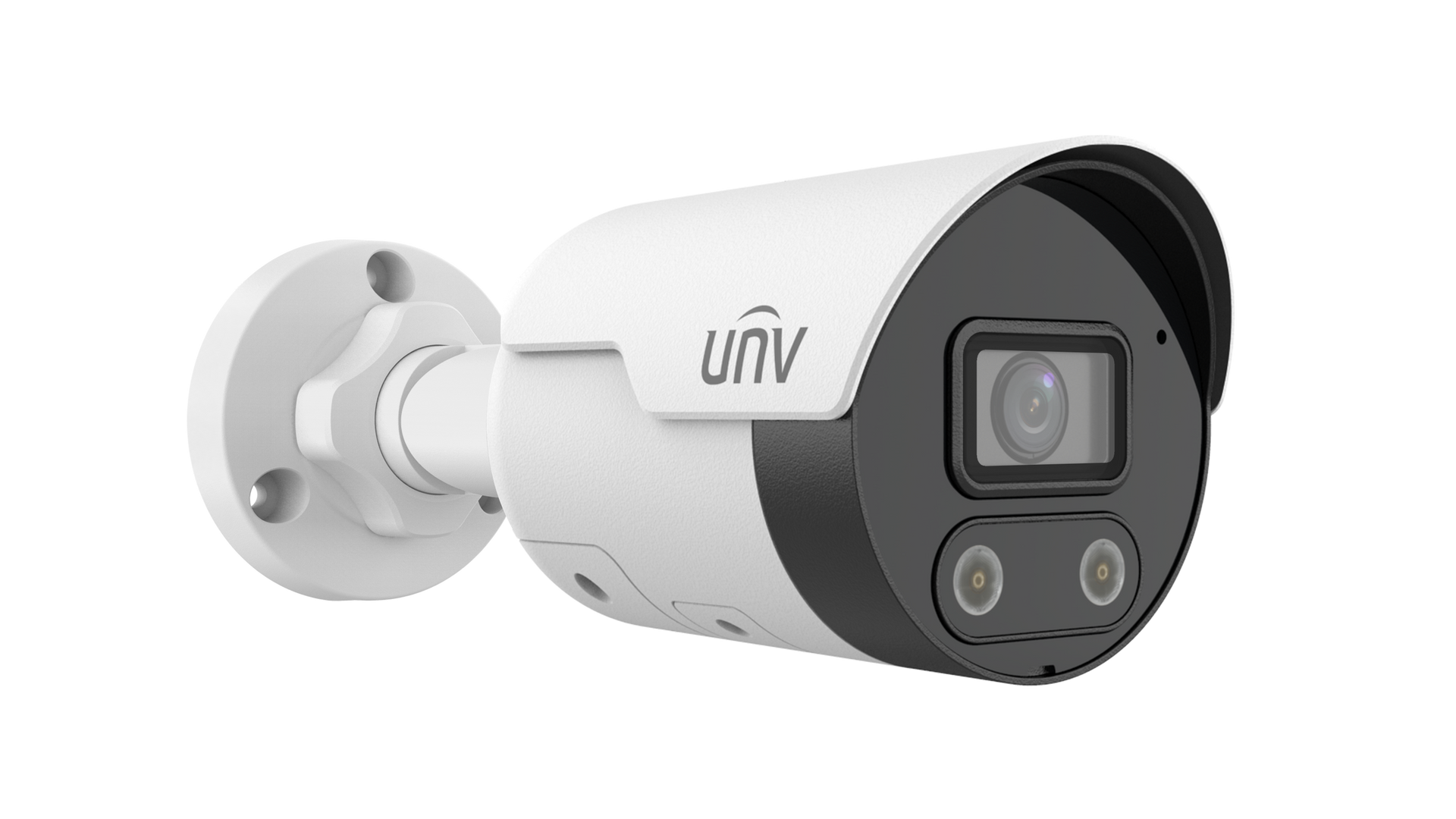

Bullet IP Camera | 8MP | Tri-Guard | Smart AI | SKU: IPC2128SB-ADF28KMC-I0
UNV Bullet IP Camera - 8MP (3840 x 2160 resolution) | Fixed 4.0mm Wide Angle Lens | Tri-Guard Active Deterrent | Smart AI
Captured Footage:
Uniview Tri-Guard Series
Optics |
Video |
Environmental |
|
|
|
The ColorHunter equipped cameras utilize a mixture of hardware and software upgrades to make low-light recording significantly brighter and clearer - exposing dark, fuzzy portion of the image that would be missed with lesser cameras. They achieve this using a large aperture, high light transmittance glass lens, and a back-illuminated large cmos sensor coupled to a their proprietary U-ISP technology to provide improved noise reduction and reduce motion blur. |
Smart AI is controlled by dedicated, on-board hardware to reduce false positives and improve the functionality of alerts & push notifications. The system is designed to accurately detect humans, non-motorized vehicles, and motorized vehicles. The feature is an advanced motion detection algorithm that allows specific triggers (i.e. the NVRs response to getting a positive result) based on AI and the ability to search footage containing only these results. |
 Ultra H.265 technology is designed to save you money by using less hard drive space and bandwidth. It consists of the standard H.265 compression and U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction while maintaining perfect image quality. It is not only a compression technology, but a cutting-edge end-to-end solution.
|
Internal Alternate ID: IPC2128SB-ADF28KMCIO
| DOCUMENTATION | |||
| Type | Description | Version | Link |
| Spec Sheet | Printable specification sheet showing all technical features of the camera | Download | |
| User Manual | User manual for Uniview IP Cameras | v3.00 | Download |
| Camera Install Guide | How to guide covering the physical installation of Uniview cameras | v1.00 | Download |
| WINDOWS SOFTWARE | |||
| Type | Description | Version | Link |
| EZTools | EZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation. | R1122.2.6.1 | Download |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | B1130.3.12.1 | Download |
| EZPlayer | EZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file types | B1111.1.6.0 | Download |
| MAC SOFTWARE | |||
| Type | Description | Version | Link |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | B1113.3.10.1 | Download |
| EZStation BETA | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs (Try this if you have problems with the official release above) | B1113.3.10.0.L02 | Download |
| IPC2128SB-ADF28KMC-I0 | IPC2128SB-ADF40KMC-I0 | ||||||||
| Camera | |||||||||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Color: 0.01 lux (F2.0, AGC ON) 0 lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
| WDR | 120dB | ||||||||
| S/N | >56dB | ||||||||
| Lens | |||||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | |||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 112.4° | 86.5° | |||||||
| Field of View (V) | 60.1° | 44.1° | |||||||
| Field of View (D) | 146.1° | 112.5° | |||||||
| DORI | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 84.0 | 33.6 | 16.8 | 8.4 | |||||
| 4.0 | 120.0 | 48.0 | 24.0 | 12.0 | |||||
| Illuminator | |||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| U-code | Support | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video Stream | Triple streams | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | Supported | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Defog | Digital Defog | ||||||||
| Intelligent | |||||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||||
| Events | |||||||||
| Basic Detection | Motion detection, tampering alarm, audio detection | ||||||||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way audio | Supported | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS ,RTMP,SSL/TLS, SSH | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||||
| Interface | |||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| RS485 | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | Support | ||||||||
| WIFI | N/A | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
| Alarm Light | Supported | ||||||||
| Certifications | |||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 10.5W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (L × W × H) | 191× 75 × 74mm (7.5” × 3.0” × 2.9”) | ||||||||
| Weight | 0.41kg (0.90lb) | ||||||||
| Material | Metal | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | Supported | ||||||||
