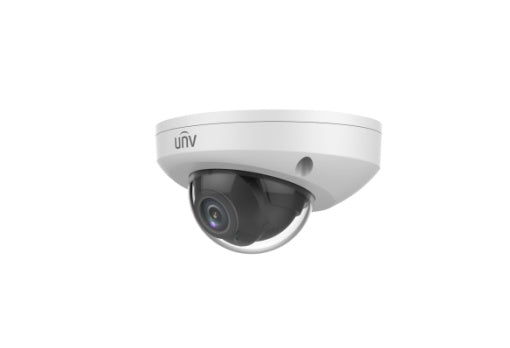

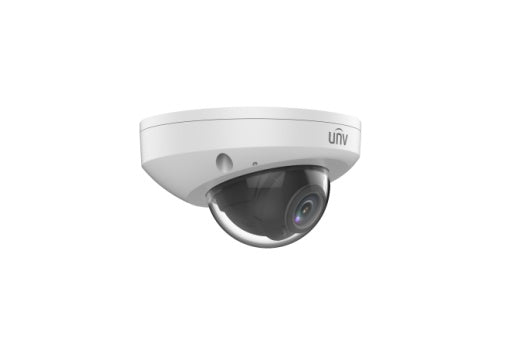

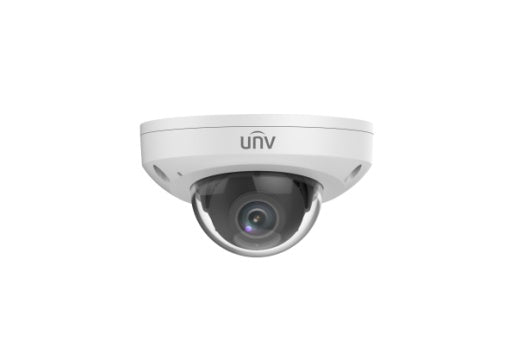

Low Profile Dome IP Camera | 8MP | 2.8mm Lens | EasyStar | SKU: IPC318SR3-ADF28KM-G
 |
 |
 |
 |
NDAA Compliant Camera |
Fixed 2.8mm Wide-Angle Lens
|
3-Axis Mounting Position
|
Built-In Microphone
|
UNV Vandal Dome IP Camera - 8MP (3840 x 2160 resolution) | Wide Angle 2.8mm Lens | EasyStar
UNV's 8MP EasyStar vandal dome provides a perfect camera for nearly all installations. It provides full 4K ultra-HD resolution coupled to a fixed, wide-angle lens giving it the ability to cover a large area with a high PPI (pixels-per-inch) rating. Add to this LightHunter mode for improved low-light capability and standard VCA features to give you a great, all-around use camera.
Key Features:
- Smart IR LEDs provide up to 30m (98ft) of illumination
- IP67 extreme weather protection & IK10 vandal impact resistance
- Supports 9:16 corridor mode (Uniview Exclusive Technology)
- Supports microSD cards onboard up to 256GB
- 8MP max resolution (3840*2160), up to 20fps
- Human detection capability
Captured Footage:
 |
National Defense Authorization Act or NDAA was modified to restrict the "use" of certain brands, and their OEMs, when dealing with the federal government and went into full effect August 2020. Use of restricted products affects government contractors even on their own security systems on their private property. Recently, the FCC has followed suit and also banned those same manufacturers. This product is made with 100% NDAA compliant parts. |
 |
This camera supports PoE (power-over-ethernet) which supplies power to the camera over the Cat5e or Cat6 cable. This means you only need one cable to give you all the video, audio, 2-way communication, and power to the camera, greatly simplifying the installation. |
 |
Ultra H.265 technology is designed to use less hard drive space and bandwidth. Powered by U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction. It is not only a compression technology, but a cutting edge end-to-end solution. |
 |
WDR (Wide Dynamic Range) allows this camera to operate more efficiently in high contrast environments that have simultaneous instances of very dark and very light areas. Activating it will normalize both areas and make it so the camera can see them at the same time. |
 |
Supports VCA features intrusion & cross-line detection that can sense human activity. The camera can discern the presence of humans in these areas and can make a alarm event that can be push to your smart device with high accuracy. |
 |
LightHunter equipped cameras utilize a mixture of hardware and software upgrades to make low-light recording significantly brighter and clearer. They achieve this using a large aperture, high light transmittance glass lens, and a back-illuminated large CMOS sensor coupled to a their proprietary U-ISP technology to provide improved noise reduction and reduce motion blur. |
Accessories:
TR-JB03-G-INJunction Box | TR-JB07-WM03-G-INDeluxe Wall Arm Bracket | TR-WM03-D-INStandard Wall Arm Bracket |
 |  |  |
TR-CM24-INPendant Mount Adapter Used in conjunction with TR-JB03-G-IN | TR-SE24-INPendant Mount Extension Used in conjunction with TR-CM24-IN | TR-SE24-A-INPendant Mount Long Extension Used in conjunction with TR-CM24-IN |
 |  |  |
| DOCUMENTATION | |||
|---|---|---|---|
| Type | Description | Version | Link |
| Specification Sheet | Printable specification sheet showing all technical features of the IP Camera | Download | |
| User Manual | User manual for Uniview IPC | v3.0 | Download |
| WINDOWS SOFTWARE | |||
| Type | Description | Location | Link |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | Uniview |
Download |
| EZTools | EZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation. | Uniview | Download |
| EZPlayer | EZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file types | Uniview | Download |
| MAC SOFTWARE |
|||
| Type | Description | Location |
Link |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | Uniview | Download |
| IPC318SR3-ADF28KM-G | ||||||||
| Camera | ||||||||
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS | |||||||
| Minimum Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0° ~ 90° | Tilt: 0° ~ 68° | Rotate: 0° ~ 360° | |||||
| WDR | 120dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Lens | 2.8mm@F1.6 | |||||||
| Iris | Fixed | |||||||
| Field of View (H) | 101.1° | |||||||
| Field of View (V) | 55.3° | |||||||
| Field of View (D) | 111.1° | |||||||
| DORI | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||
| Illuminator | ||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Triple streams | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| BLC | Support | |||||||
| HLC | N/A | |||||||
| Defog | Digital Defog | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, tampering alarm, audio detection | |||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, Up to 256GB | |||||||
| Network Storage | ANR, NAS(NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH,SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator,common user and operator | |||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
| Alarm I/O | N/A | |||||||
| RS485 | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certifications | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3,EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max TBD | ||||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||||
| Dimensions (Ø x H) | Φ110 x 61mm (Ø4.3” x 2.4”) | |||||||
| Weight | 0.37kg (0.82lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| surge protection | 4KV | |||||||
| Reset Button | N/A | |||||||
