Turret IP Camera | 4MP | 2.8mm Lens | EasyStar | SKU: IPC3614SR3-ADF28KM-G
Drag image to spin

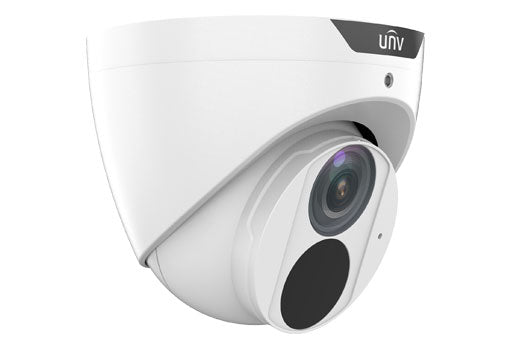

Turret IP Camera

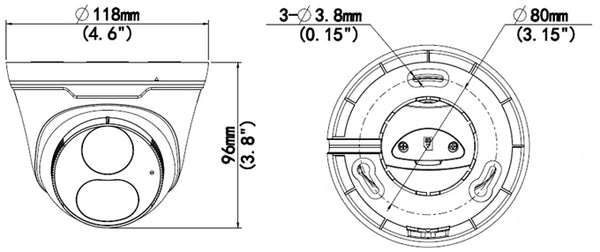

Turrent IP Camera Diagram

Turret IP Camera | 4MP | 2.8mm Lens | EasyStar | SKU: IPC3614SR3-ADF28KM-G

$309.00 $259.00 MAP
In Stock
T4113
-
+
Add to Wishlist
Turret IP Camera | 8MP | 2.8mm Lens | EasyStar | SKU: IPC3618SR3-ADF28KM-G-BK

Turret IP Camera | 8MP | 2.8mm Lens | EasyStar | SKU: IPC3618SR3-ADF28KM-G-BK

Turret IP Camera | 4MP | 2.8mm Lens | EasyStar | SKU: IPC3614SR3-ADF28KM-G-BK

Turret IP Camera | 4MP | 2.8mm Lens | EasyStar | SKU: IPC3614SR3-ADF28KM-G-BK



NDAA Icon
Fixed Lens
3-Axis
Microphone

NDAA Compliant Camera

Fixed 2.8mm Wide-Angle Lens

3-Axis Mounting Position

Built-In Microphone

 easystar logo

UNV Turret IP Camera - 4MP (2688 x 1520 resolution) | Wide Angle 2.8mm Lens | EasyStar


UNV's 4MP EasyStar turret camera is a great mid-tier camera offering a mix of features that satisfy many installation requirements.  It provides 4MP resolution, a wide-angle lens, LightHunter mode for improved low-light capability, and standard VCA features.

Key Features:

  • Smart IR LEDs provide up to 30m (98ft) of illumination
  • IP67 extreme weather protection
  • Supports 9:16 corridor mode (Uniview Exclusive Technology)
  • Supports microSD cards onboard up to 256GB
  • 4MP max resolution (2688*1520), up to 20/25fps
  • Human detection capability




NDAA Icon
National Defense Authorization Act or NDAA was modified to restrict the "use" of certain brands, and their OEMs, when dealing with the federal government and went into full effect August 2020.  Use of restricted products affects government contractors even on their own security systems on their private property.   Recently, the FCC has followed suit and also banned those same manufacturers.  This product is made with 100% NDAA compliant parts.
PoE Icon
This camera supports PoE (power-over-ethernet) which supplies power to the camera over the Cat5e or Cat6 cable.  This means you only need one cable to give you all the video, audio, and power to the camera, greatly simplifying the installation.
H.265 Icon
Ultra H.265 technology is designed to use less hard drive space and bandwidth. Powered by U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction. It is not only a compression technology, but a cutting edge end-to-end solution.
wide dynamic range WDR (Wide Dynamic Range) allows this camera to operate more efficiently in high contrast environments that have simultaneous instances of very dark and very light areas. Activating it will normalize both areas and make it so the camera can see them at the same time.
Smart VCA Supports VCA features intrusion & cross-line detection that can sense human activity.  The camera can discern the presence of humans in these areas and can make a alarm event that can be push to your smart device with high accuracy.
lighthunter low light camera

LightHunter equipped cameras utilize a mixture of hardware and software upgrades to make low-light recording significantly brighter and clearer.  They achieve this using a large aperture, high light transmittance glass lens, and a back-illuminated large CMOS sensor coupled to a their proprietary U-ISP technology to provide improved noise reduction and reduce motion blur.



Accessories:



TR-JB03-G-IN

Junction Box

TR-JB07-WM03-G-IN

Deluxe Wall Arm Bracket

TR-WM03-D-IN

Standard Wall Arm Bracket

BACKBOX

WALLARM DELUXE

WALLARM


TR-CM24-IN

Pendant Mount Adapter

Used in conjunction with TR-JB03-G-IN

TR-SE24-IN

Pendant Mount Extension

Used in conjunction with TR-CM24-IN

TR-SE24-A-IN

Pendant Mount Long Extension

Used in conjunction with TR-CM24-IN

pendant mount

pendant extension

pendant extension




DOCUMENTATION
TypeDescriptionVersionLink
Spec SheetPrintable specification sheet showing all technical features of the camera Download
User ManualUser manual for Uniview IP Camerasv3.00Download
Camera Install GuideHow to guide covering the physical installation of Uniview camerasv1.00Download
WINDOWS SOFTWARE
TypeDescriptionVersionLink
EZToolsEZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation.R1122.2.6.1Download
EZStationVMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRsB1130.3.12.1Download
EZPlayerEZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file typesB1111.1.6.0Download
MAC SOFTWARE
TypeDescriptionVersionLink
EZStationVMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRsB1113.3.10.1Download
EZStation BETAVMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs (Try this if you have problems with the official release above)B1113.3.10.0.L02Download



 IPC3614SR3-ADF28K-G
Camera
Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.6
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.025.212.66.3
Angle Of View (H)101.1°83.7°
Angle Of View (V)55.3°44.9°
Angle Of View (O)111.1°89.2°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationSupport LightHunter: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>56dB
IR RangeUp to 30m (98ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
9:16 Corridor ModeSupported
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupported
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupported
BLCSupported
Smart
Behavior DetectionCross line, intrusion(based on human body detection)
motion detection, tampering alarm, audio detection
General FunctionWatermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation EZView EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Interface
Network10/100M Base-TX Ethernet
Built-in MicSupported
Certifications
CertificationsUL: UL60950-1 FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Dimensions (Ø x H)Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
Net Weight0.43kg (0.95lb)
MaterialMetal
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection2KV
Ingress ProtectionIP67
Reset ButtonN/A
