Network Switch | 16+2 Ports | Gigabit | PoE | 200W

$276.63 MAP
WI-PS318GFH
Wi-Tek
-
+
Add to Wishlist
Network Switch | 24+2 Ports | Gigabit | PoE | 250W

Network Switch | 24+2 Ports | Gigabit | PoE | 250W

Network Switch | 8+1 Ports | Gigabit | PoE | 65W

Network Switch | 8+1 Ports | Gigabit | PoE | 65W

WiTek PoE Network Switch - 16+2 Ports - Gigabit
  • 16x 1000Mbps RJ45 PoE Ports
  • 2x 1000Mbps RJ45 Port
  • 2x 1000Mbps SFP Slot
  • Each port supports Supports IEEE 802.3af/at 30W PoE
  • PoE power budget 200W
  • CCTV Mode supports 250m long distance and port isolation function
  • PoE watchdog detects, reboots unresponsive PoE-powered devices
  • Plug and play with no configuration required

Break the PoE distance limitation! Wi-Tek provides a robust and cost-effective PoE solution to power up your CCTV, Access point and other IP-based devices which up to 250m away. Most robust features like Extend Mode, PoE Watchdog Function, Port Isolation, provide a lot of value for basic networking needs, creating a versatile and reliable surveillance network to grow your business.

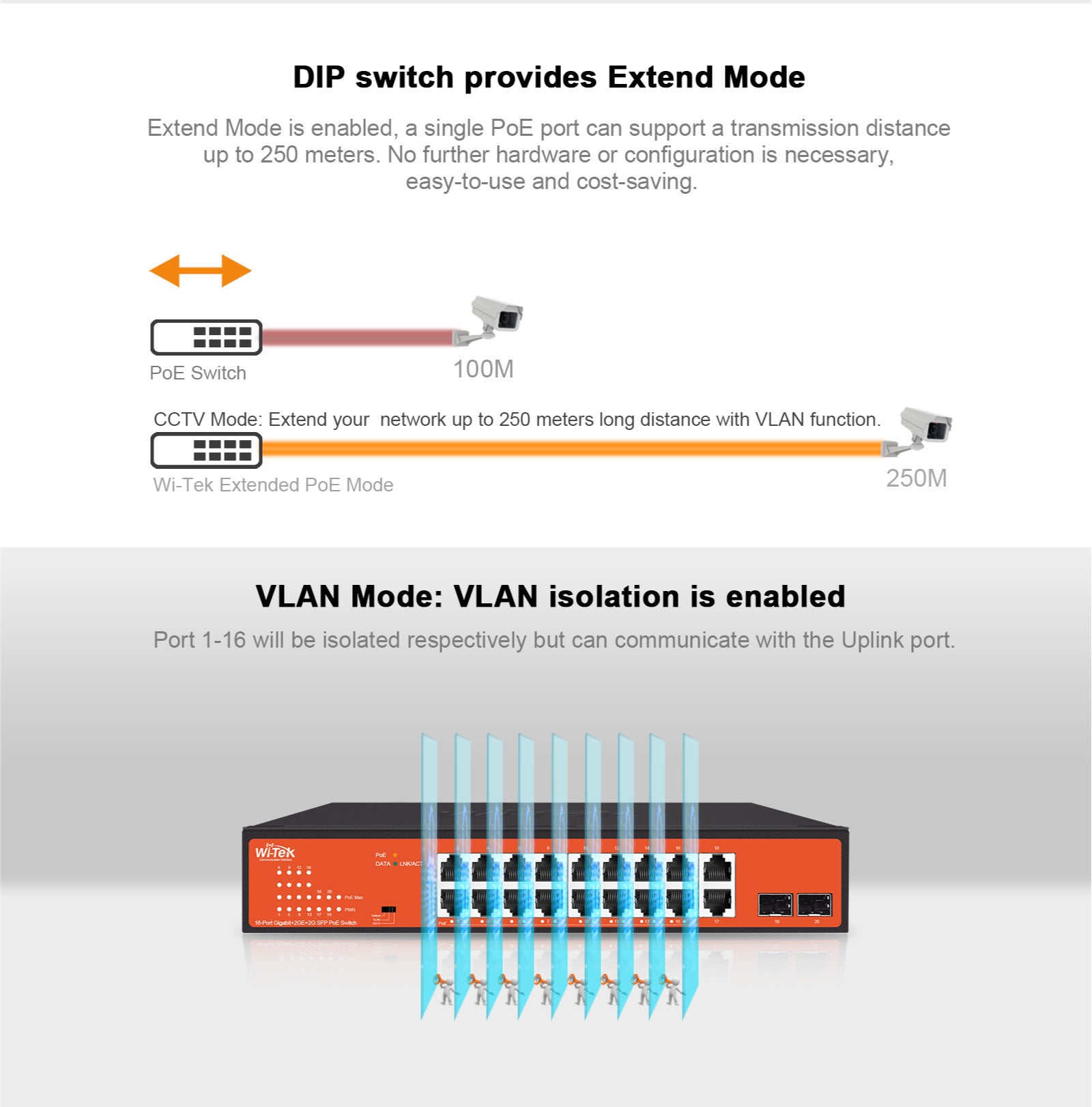

PoE 250m Long Distance to Extend Network

DIP switch can enable Extend Mode that allows all PoE ports to transmit data and power up to 250 meters. No further hardware or configuration is necessary, easy-to-use and cost-saving. Perfect for surveillance camera deployment in large areas.

Smart PoE Watchdog to Reboot Camera Automatically

All PoE ports have the PoE watchdog function enabled, which can detect and reboot the offline compliant PoE powered devices.

Port Isolation to Prevent Broadcast Storm

With VLAN Mode, all PoE ports only can communicate with uplink ports. Avoid data leakage between each port and prevent broadcast storm from disabling network.

DOCUMENTATION
Type Description Version Link
Specification Sheet Printable specification sheet for Wi-Tek product V1.0 Download



HARDWARE FEATURES

WI-PS318GFH

Hardware Version

V1

Interface

16 1000Mbps RJ45 PoE Ports

2 1000Mbps Combo

Network Media

10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m)

100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)

Fan Quantity

1 × Fan

Power Supply

AC 100~240V 50/60HZ

PoE Standard

802.3 af/at compliant PoE

PoE Ports

Port 1-16

PoE Power Budget

200W

Mac Address Table

4k

Packet Forwarding Rate

26.79Mpps

Jumbo Frame

10kB

Protection Level

6kV Lightning protection

6kV ESD Contact discharge

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

LED Indicator

PoE/Link/Power

DIP Switch

Default/VLAN/CCTV

250m

Yes

Port VLAN

Yes

PoE Watchdog

Yes

Advanced Functions

Mac Address Auto- Learning

Auto-Aging Store and forward

IEEE 802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

210×180×80mm

Switch Dimension

170×95×30mm

Gross Weight

0.7kg

Net Weight

0.45kg

Package Contents

1 × Switch

1 × Power Cord

1 × Quick Installation Guide
