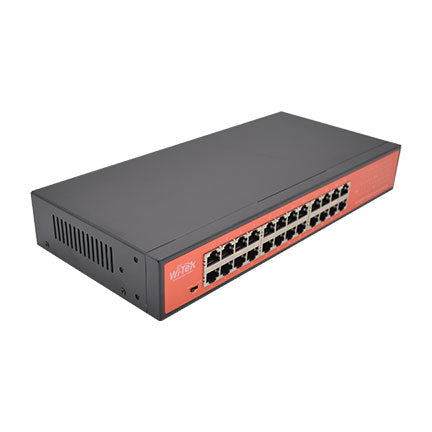

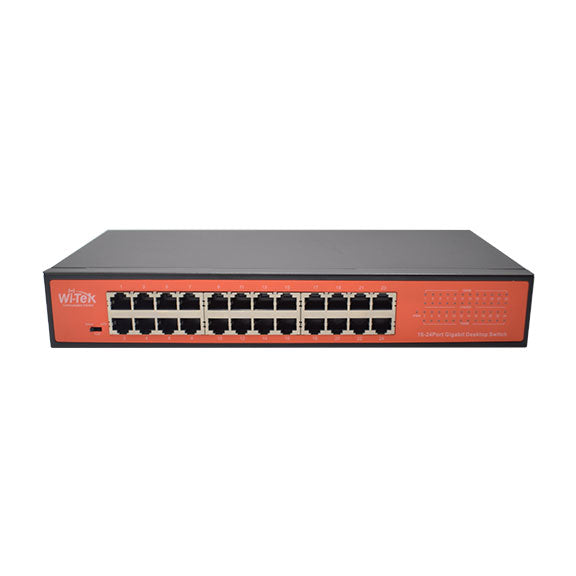

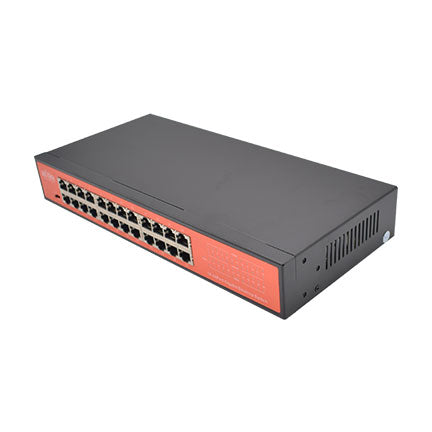

Network Switch | 24 Ports | Gigabit
- 24x 100/1000Mbps RJ45 Ports
- Plug and play, zero configuration
- Supports desktop or wall mount installation

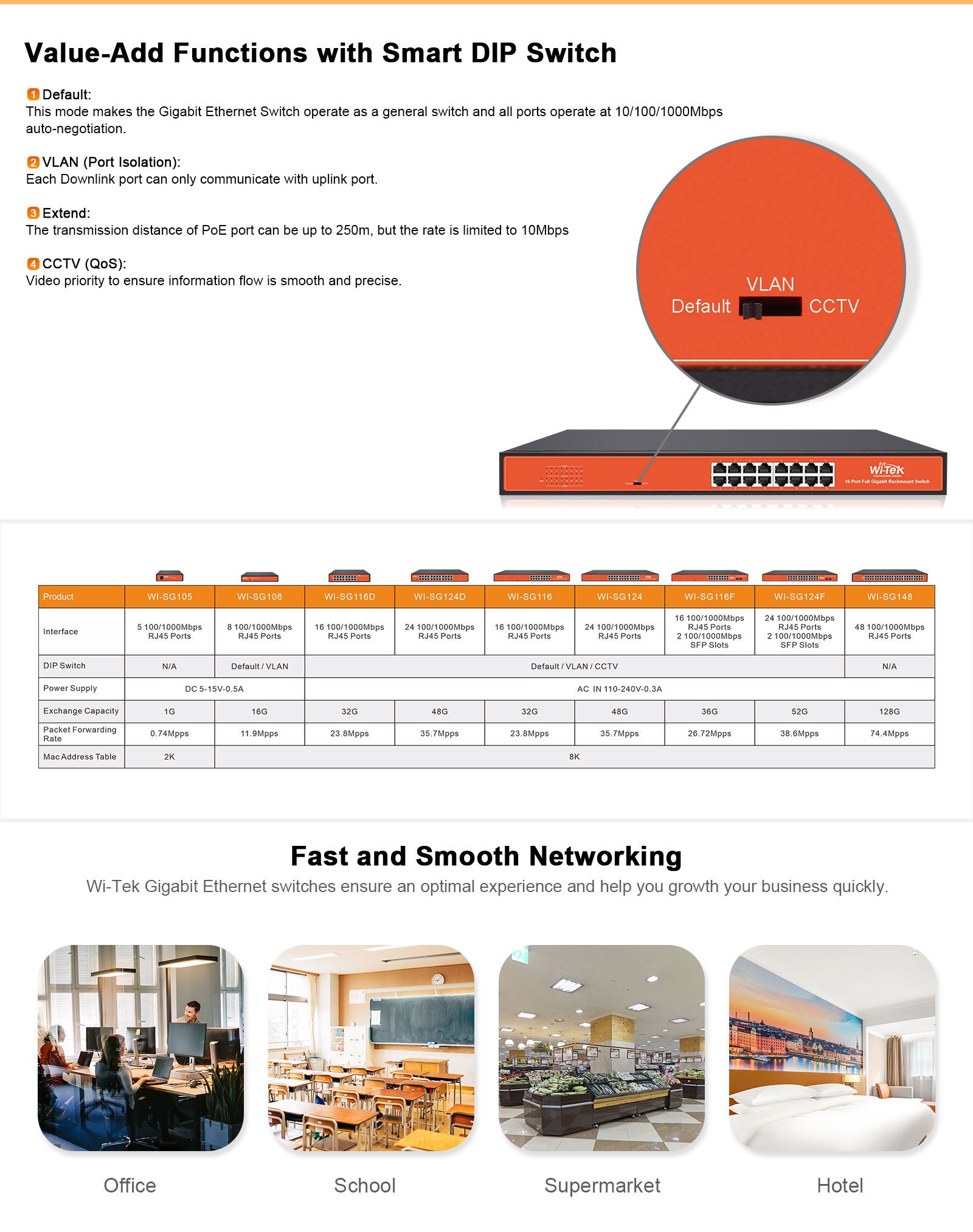

- Smart DIP Switch: Port VLAN mode
- Energy efficient design compliant with IEEE802.3az
- Silent operation ideal for noise sensitive environment
Wi-Tek Gigabit Ethernet Switches provide an easy way to expand your wired network. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Featuring full duplex mode can send and receive data at a rate up to 1000Mbps, making it an ideal choice for expanding your high performance network.
Full gigabit access, full-line speed forwarding
All ports support high-speed forwarding, user-flexibly flexible networking, to meet the needs of various scenarios networking, such as hotel, campus, factory dormitory and small and medium-sized enterprises.
Plug and play, no configuration required
A plug-and-play design lets administrators quickly connect the switch to devices with no hassles, no technician needed. Auto- negotiation on each port senses and adjusts the link speed of a network intelligently to ensure an overall boost in performance and reliability. Convenient for wall-mounted, desktop and rack installations.
Long service Life with sturdy and durable mental shell
Wi-Tek Gigabit Ethernet Switches are protected by high-quality metal shell to ensure the long service life. They have passed a series of strict tests and provided you with reliable performance.
| DOCUMENTATION | |||
|---|---|---|---|
| Type | Description | Version | Link |
| Specification Sheet | Printable specification sheet for Wi-Tek product | V2.0 | Download |
HARDWARE FEATURES | WI-SG124D |
Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
Interface | 24 100/1000Mbps RJ45 Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
DIP Switch | Default/VLAN/CCTV |
Fan Quantity | Fanless |
Exchange Capacity | 48G |
Packet Forwarding Rate | 35.7Mpps |
Mac Address Table | 8K |
Power Adapter | AC IN: 110-240V |
Packet Buffer Memory | 12Mb |
Jumbo Frame | 10240 Bytes |
Port VLAN | Yes |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Dimension | 380×215×95 mm |
Switch Dimension | 305×140×45 mm |
Gross Weight | 1.67kg |
Net Weight | 1.17kg |
Package Contents | 1 × Gigabit Switch 1 × Power Cord 1 × Quick Installation Guide |
Working Temperature | -10℃～55℃ |
Storage Temperature | -40℃～70℃ |
Working Humidity | 10%～90% RH non-condensing |
Storage Humidity | 5%～90% RH non-condensing |
