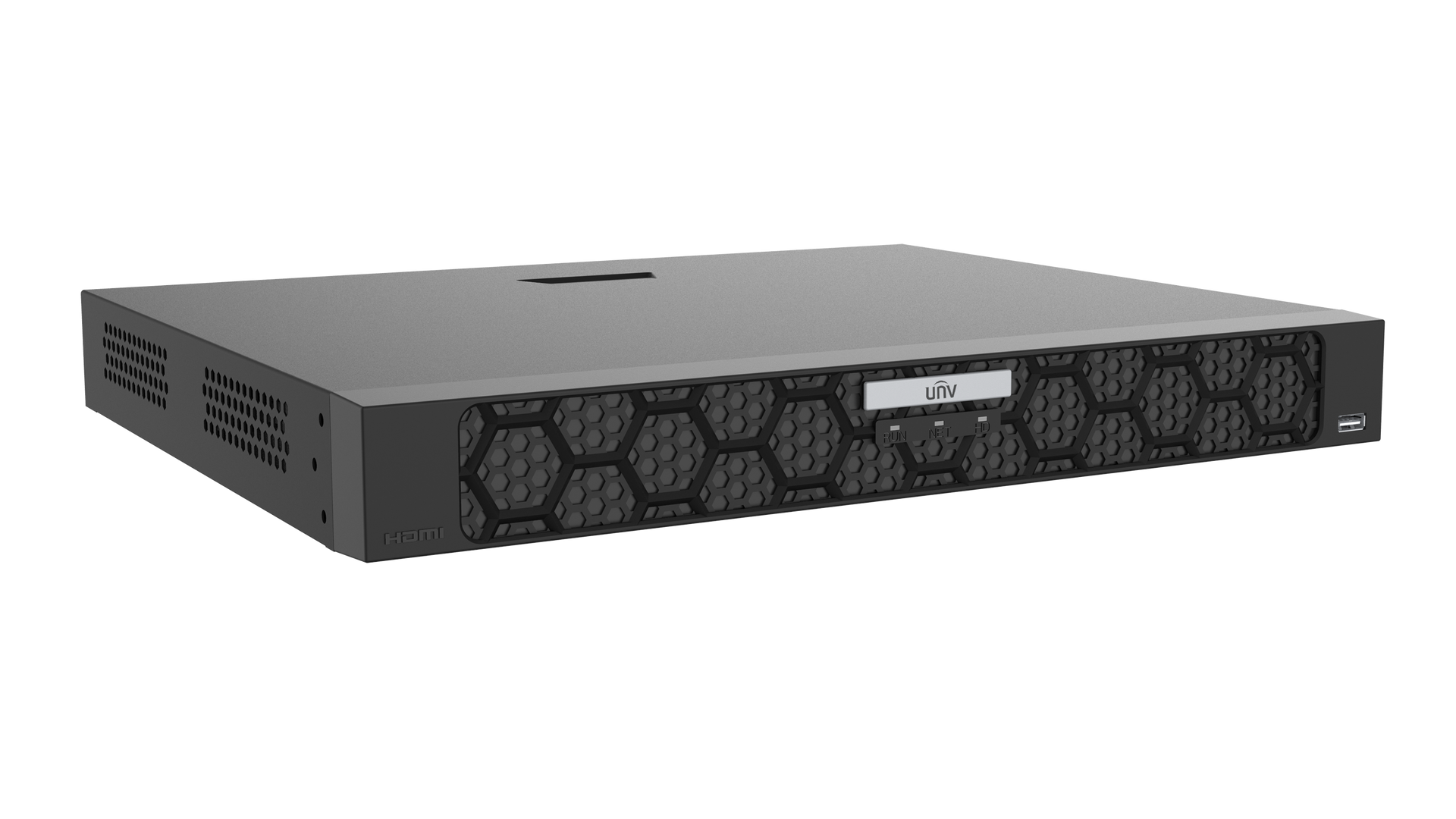

UNV 32-Channel NVR Network Video Recorder, 16pt PoE, 2 HDD, 500-B Series
• 32-channel input
• Plug & Play with 16 independent PoE network interfaces
•Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• VGA and HDMI independent output
• Up to 16 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Decoding Capability: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
• Incoming Bandwidth: 320 Mbps / Outgoing Bandwidth: 160 Mbps
| DOCUMENTATION | |||
|---|---|---|---|
| Type | Description | Version | Link |
| Specification Sheet | Printable specification sheet showing all technical features of the IP Camera | Download | |
| User Manual | User manual for Uniview NVR | v3.02 | Download |
| WINDOWS SOFTWARE | |||
| Type | Description | Location | Link |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | Uniview |
Download |
| EZTools | EZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation. | Uniview | Download |
| EZPlayer | EZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file types | Uniview | Download |
| MAC SOFTWARE |
|||
| Type | Description | Location |
Link |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | Uniview | Download |
| Model | NVR502-08B-P8 | NVR502-16B-P16 | NVR502-32B-P16 | ||||
| Video/Audio Input | |||||||
| IP Video Input | 8-ch | 16-ch | 32-ch | ||||
| Audio Input | 1-ch, RCA | ||||||
| Network | |||||||
| Incoming bandwidth | 320Mbps | ||||||
| Outgoing bandwidth | 160Mbps | ||||||
| Remote Users | 128 | ||||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 | ||||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||||||
| Video/Audio Output | |||||||
| HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 | ||||||
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||
| Audio Output | 1-ch, RCA | ||||||
| Two-way Audio | 1-ch, RCA(Using the audio input and output) | ||||||
| Audio Compression | G.711A, G.711U | ||||||
| Synchronous Playback | 8-ch | 16-ch | 16-ch | ||||
| Liveview display | 1/4/6/8/9 | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/32 | ||||
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | ||||
| Snapshot | |||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | ||||||
| Decoding | |||||||
| Decoding format | Ultra 265/H.265/H.264 | ||||||
| Live view/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 | ||||||
| Hard Disk | |||||||
| SATA | 2 SATA interfaces | ||||||
| Capacity | Up to 10TB for each disk | ||||||
| Smart | |||||||
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring | ||||||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | ||||||
| People Counting | People Flow Counting, Crowd Density Monitoring | ||||||
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera | Total 8-ch | ||||||
| General Alarm | |||||||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | ||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||
| External Interface | |||||||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||||||
| USB Interface | Front: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||||||
| RS232 | NA | ||||||
| RS485 | 1 | ||||||
| Alarm In | 8-ch | ||||||
| Alarm Out | 2-ch | ||||||
| PoE | |||||||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |||||
| Max Power | Max 30W for single port Max 130W in total | Max 30W for single port Max 240W in total | |||||
| Supported Standard | IEEE 802.3af/at | ||||||
| General | |||||||
| Power Supply | 100~240V AC Power Consumption: ≤ 20W (without HDD) | ||||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||
| Dimensions (W×D×H) | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") | ||||||
| Weight (without HDD) | ≤ 2.6Kg (5.73lb) | ||||||
| Certification | |||||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | ||||||
| FCC | Part15 Subpart B | ||||||
