PoE Extender | 2 Ports | Gigabit

$36.00 MAP
In Stock
WI-PE31G
-
+
Add to Wishlist
PoE Extender | 4 Ports | Gigabit

PoE Extender | 4 Ports | Gigabit

WiTek PoE Extender - 2 Port Output - Gigabit
  • PoE in port: 1*1000Mbps PoE port with 802.3af/at 30W
  • DC input port: 48-55V
  • PoE output port: 2*1000Mbps PoE port with 802.3at/at 30W
  • Support desktop mount and wall mount
  • Plug and play, zero configuration
  • Cost-effective to extend your network

DOCUMENTATION
Type Description Version Link
Specification Sheet Printable specification sheet for Wi-Tek product V2.0 Download



HARDWARE FEATURES

WI-PE31G

Interface

PoE in port:

1 x 1000Mbps PoE port with 802.3af/at 30W

DC in port:48-55V

PoE out port:

2 x 1000Mbps PoE port  with 802.3at/at 30W

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)

Fan Quantity

Fanless

PoE PIN

PoE IN: 4/5(+) 7/8(-)or 1/2(+) 3/6(-)

PoE OUT: 4/5(+) 7/8(-)or 1/2(+)3/6(-)

LED Indicator

PWR, Link

DIP Switch

Extend

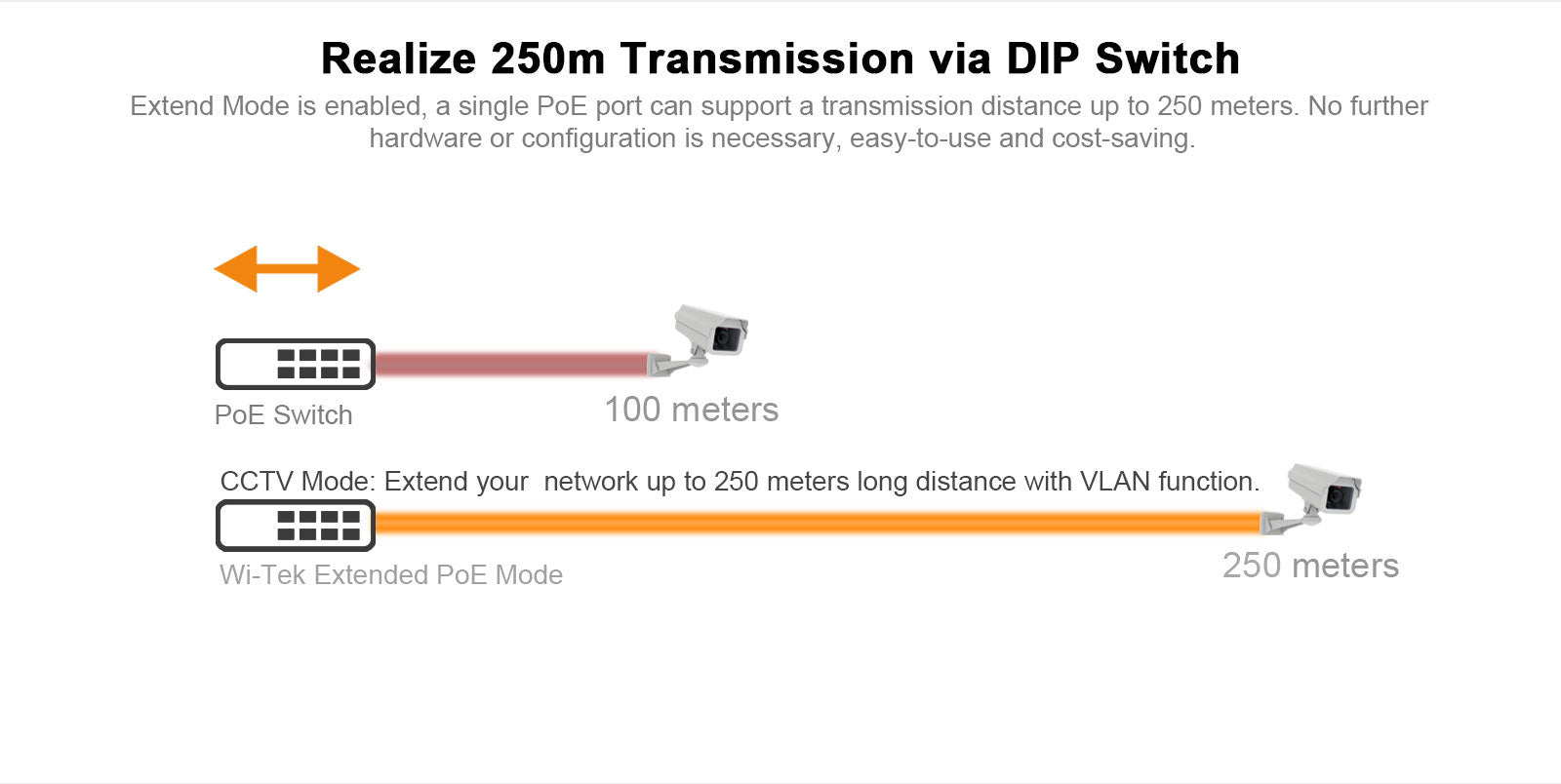

250m Long Distance

Yes

Transmission Method

Store-And-Forward

Advanced Functions

Mac Address Auto-Learning And Auto-Aging

Store and forward

IEEE 802.3x flow control for

Full-duplex Mode Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

100×100×30mm

Switch Dimension

87×87×25mm

Gross Weight

0.17kg

Net Weight

0.14kg

Operating Temperature

-10°C~55°C

Package Contents

1 x PoE Extender

1*Installation Guide
