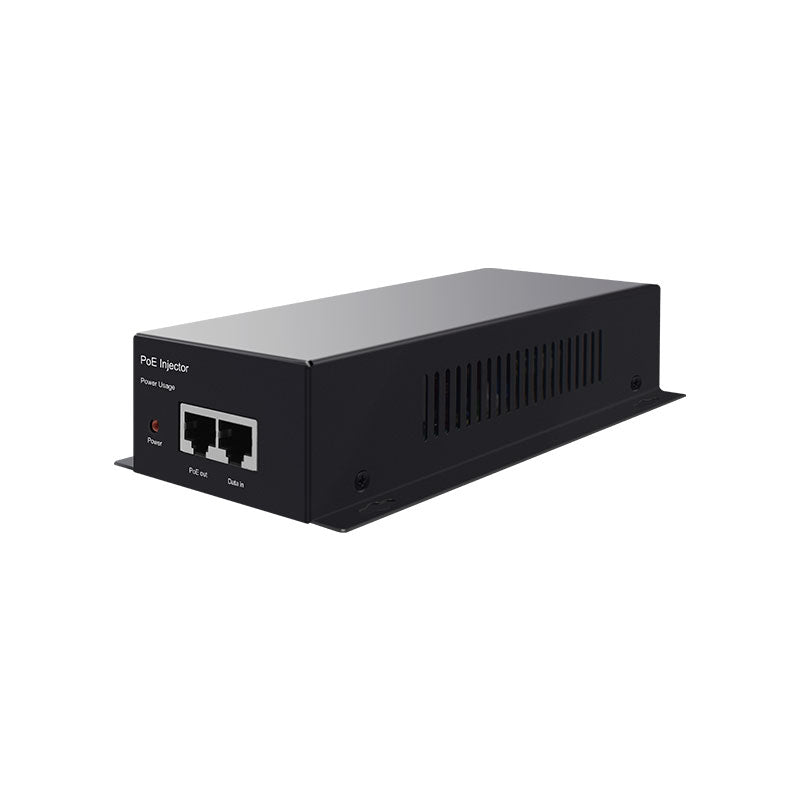

PoE Injector | 90W | Gigabit
- 1* 100/1000Mbps PoE output port with 802.3bt 90W
- 1* 100/1000Mbps Ethernet input port
- Input 100-240V AC
- Metal casing with high quality
- Support desktop and wall mount
| DOCUMENTATION | |||
|---|---|---|---|
| Type | Description | Version | Link |
| Specification Sheet | Printable specification sheet for Wi-Tek product | V1.0 | Download |
HARDWARE FEATURES
WI-POE58-BT
Interface
1 10/1000Mbps PoE RJ45 Port
1 10/1000Mbps Ethernet Port
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
Power Supply

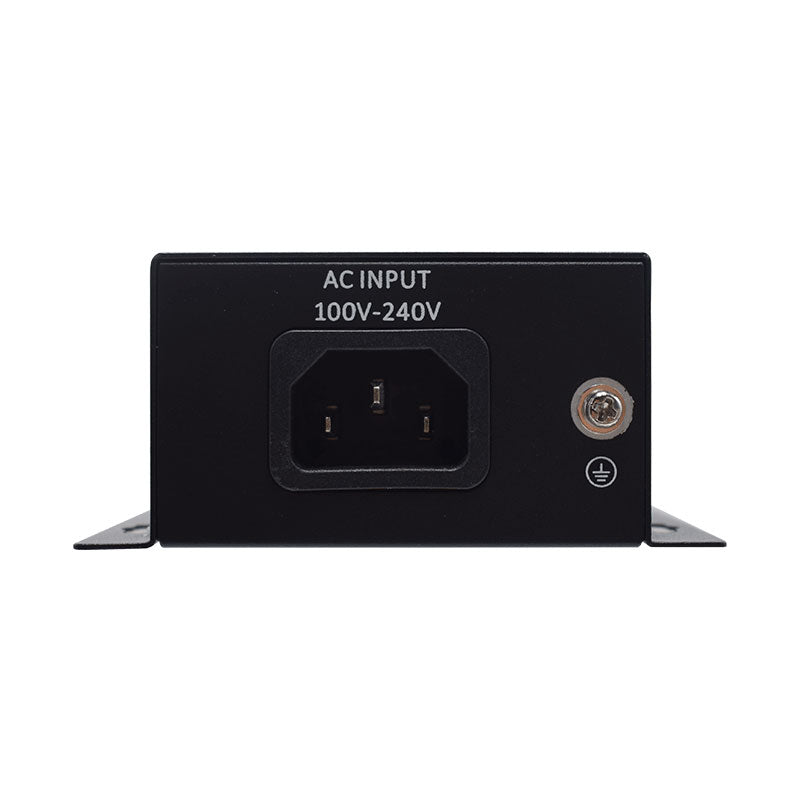

AC IN 100-240V
Data In/Out
110/1000Mbps Data In
Power In/Out Port
1 x 802.3 af/at/bt 90W PoE Out
PoE PIN
1/2（-）3/6（+）；4/5+ 7/8-
PoE Consumption
52V 90W
LED Indicator
PWR-Power
DIP Switch
N/A
Fan Quantity
Fanless
Background Bandwidth
2Gbps
Transmission Method
Store-And-Forward
Protection Level
6kV Lightning protection
6kV ESD Contact discharge
Advanced Functions
Mac Address Auto-Learning And Auto-Aging
Store and forward
IEEE 802.3x flow control for
Full-duplex Mode
Backpressure for Half-duplex Mode
OTHERS
Certification
CE, FCC, RoHS
Package Dimension
205×134×47mm
DeviceDimension
113×48×30mm
Gross Weight
0.74kg
Net Weight
0.5kg
Package Contents
1 x PoE Switch
1 x Power Cord
1 x Quick Installation Guide
Operating Temperature
-10°C~55°C
