PoE Injector | No-Break UPS Backup | Gigabit
- 2x 10/100/1000Mbps Ports UPS No-break PoE Injector
- Inside battery controller for charge and dis-charge
- 24-48V PoE output optional
- Support AC 90-240V in, 12V battery 30AH max

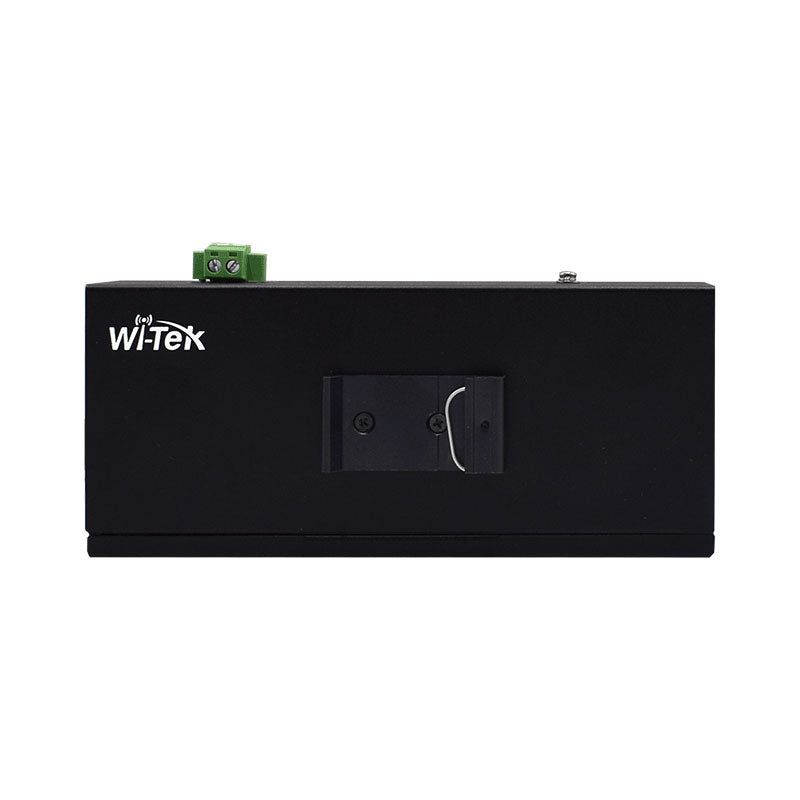

- Support DIN-rail Mount and wall-mount
- Small size design for outdoor CCTV system waterproof box

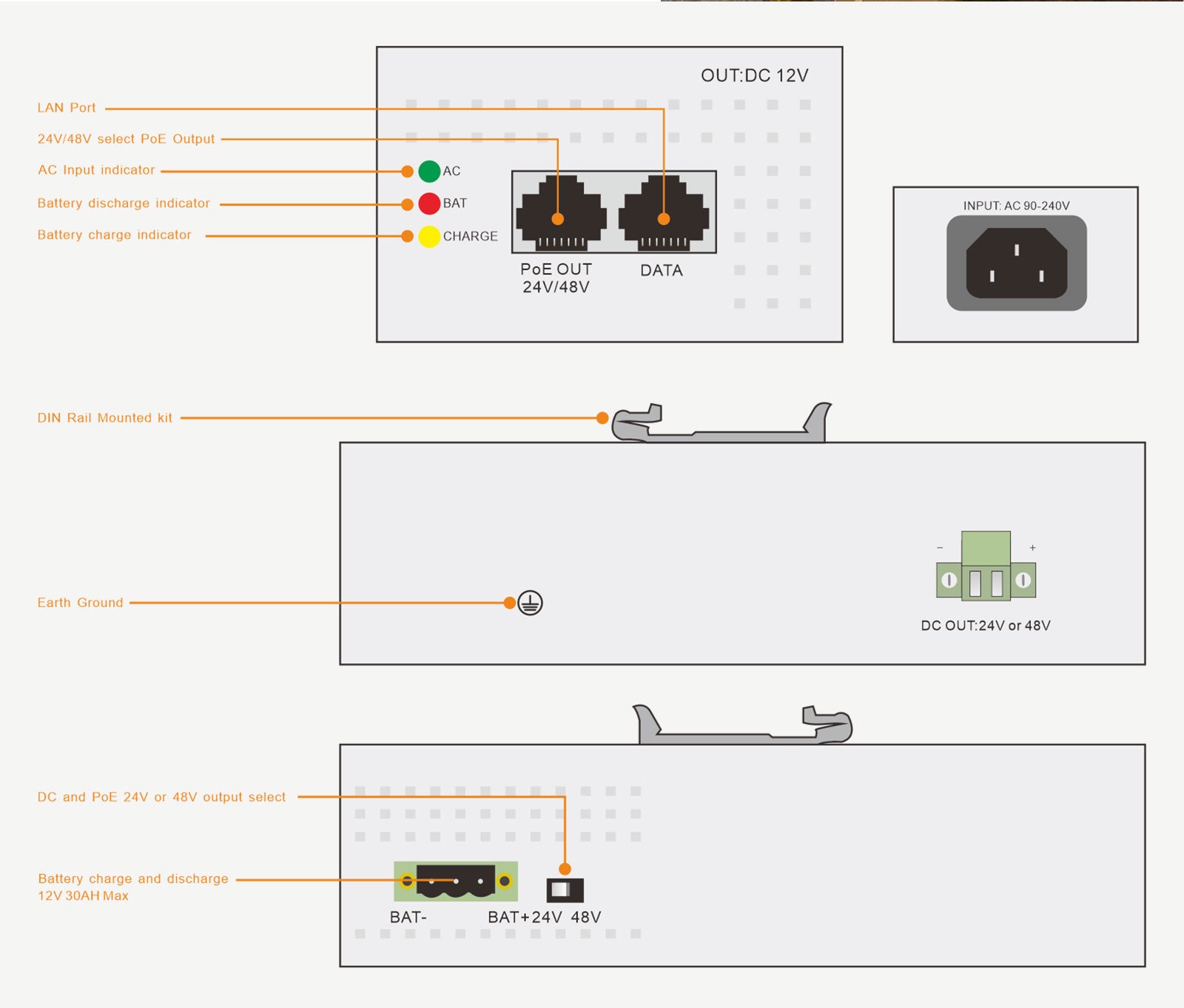

WI-PS302G-UPS is a versatile 2-port PoE Switch with the functions of DC12V PoE switch and UPS PoE switch, featuring internal voltage booster, UPS battery control, switchable DC24V/48V and switchable PoE 48V and 24V.
Variety of Uses:
As a DC 12V PoE Switch

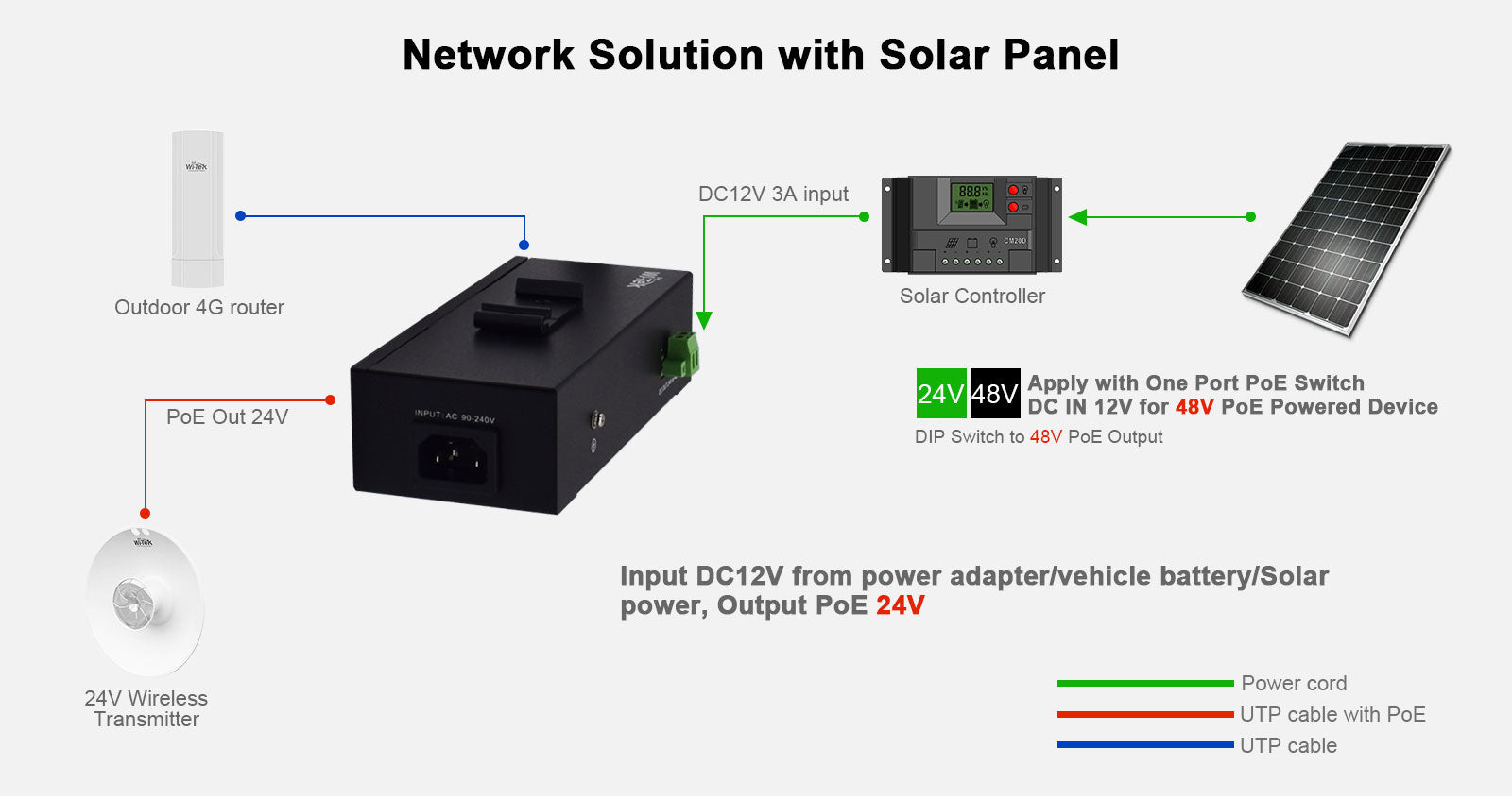

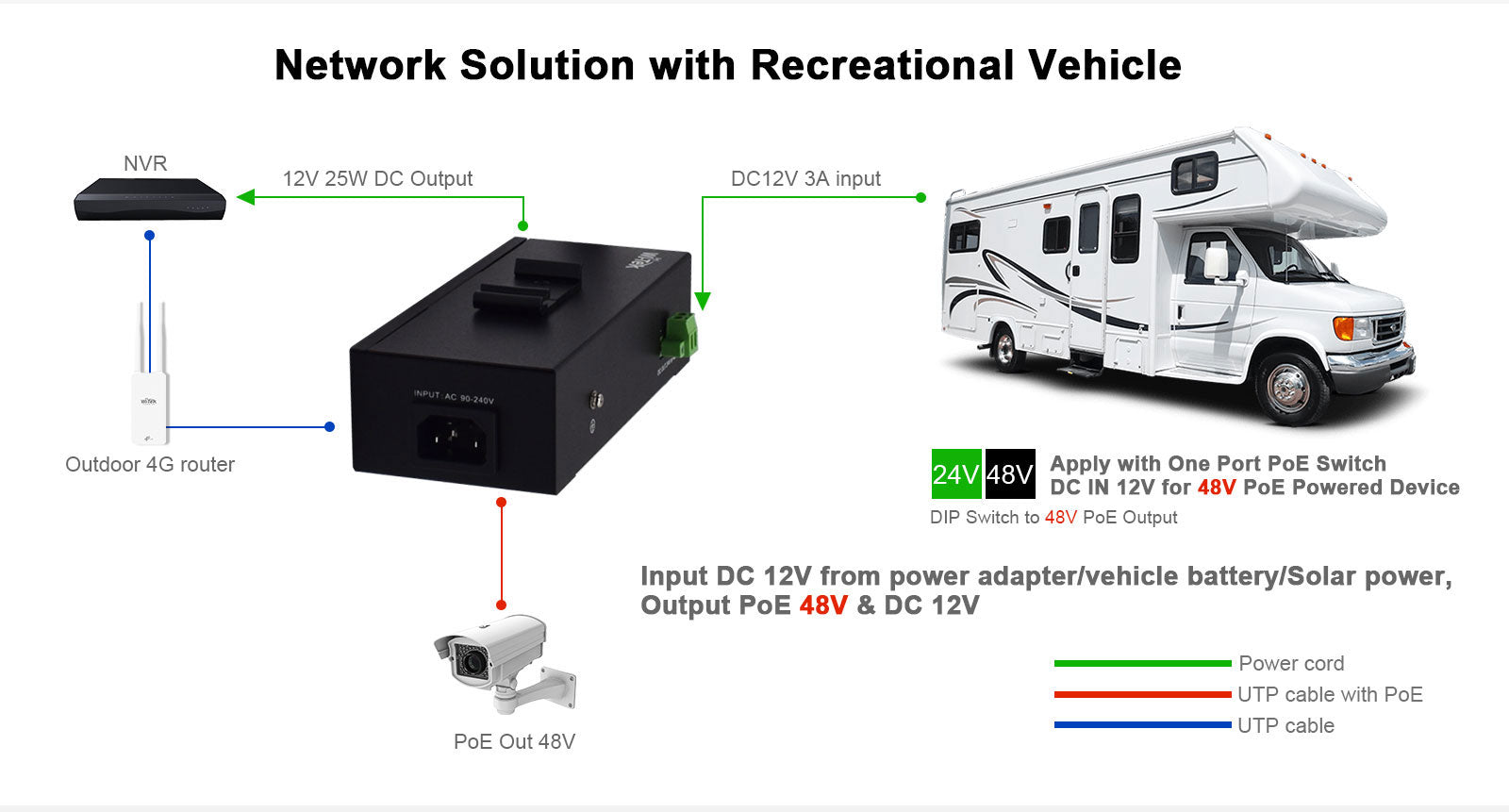

Support DC 12V input from power adapter, vehicle battery or solar power
One Ethernet data port 10/100/1000Mbps for LAN connection
Provide one IEEE802.3af/at Standard 48V PoE output, or switchable to PoE 24V, max power output is 25W
Provide one 12V 3A DC output (For NVRs, router, light, etc.)

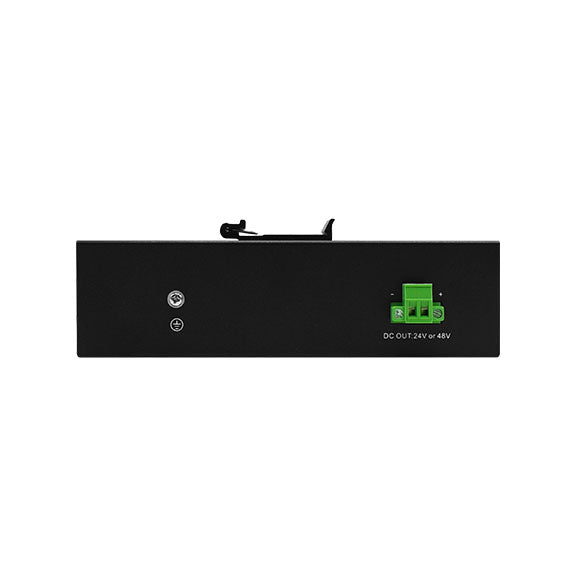

Provide one 24V/48V DC output (Optional)

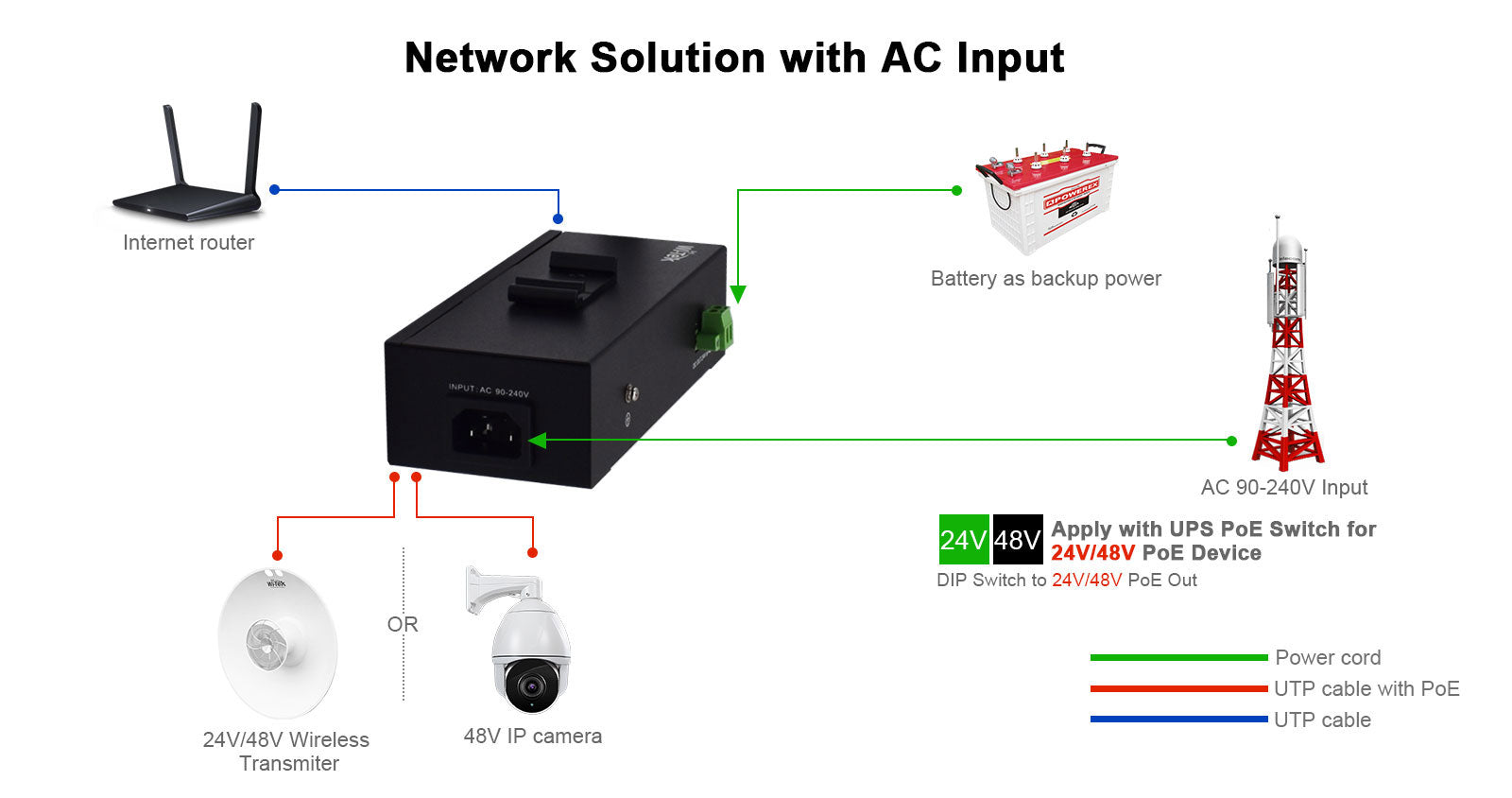

As a UPS PoE Switch
Support 90 - 240V AC input

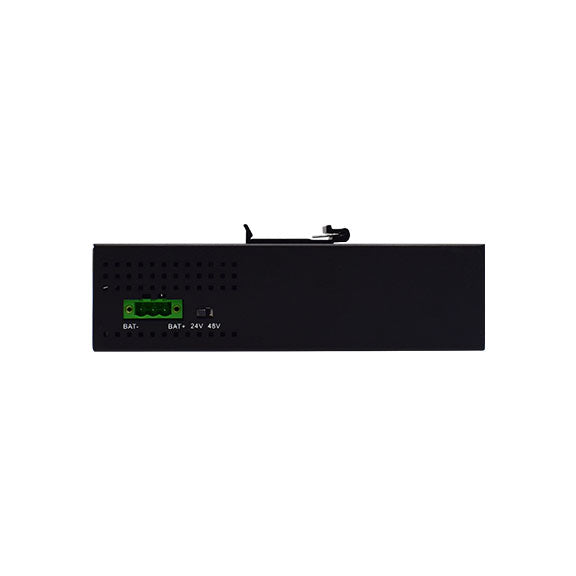

Compatible with lead-acid and lithium battery as back up power
One ethernet data port 10/100/1000Mbps for LAN connection
Provide one IEEE802.3af/at Standard 48V PoE output, or switchable to PoE 24V, max power output is 25W
Provide one 12V 3A DC output (For NVRs, router, light, etc.)
Provide one 24V/48V DC output (Optional)
| DOCUMENTATION | |||
|---|---|---|---|
| Type | Description | Version | Link |
| Specification Sheet | Printable specification sheet for Wi-Tek product | V1.0 | Download |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
