Vandal Dome Wifi Camera | 2MP | 2.8mm Lens | SKU: IPC322LB-AF28WK-G

$209.00 $169.00 MAP
In Stock
D2011
-
+
Add to Wishlist
Vandal Dome Wifi Camera Kit | 2MP | 4 Channel | SKU: KIT-4CH-WIFI-VD

Vandal Dome Wifi Camera Kit | 2MP | 4 Channel | SKU: KIT-4CH-WIFI-VD

Indoor Dome IP Camera | 4MP | 2.8mm Lens | WDR | SKU: IPC354SR3-ADNPF28-F

Indoor Dome IP Camera | 4MP | 2.8mm Lens | WDR | SKU: IPC354SR3-ADNPF28-F



wifi camera
Fixed Lens
easy camera installation
Microphone

Wireless IP Camera

Fixed 2.8mm Wide-Angle Lens

Easy Installation

Built-In Microphone

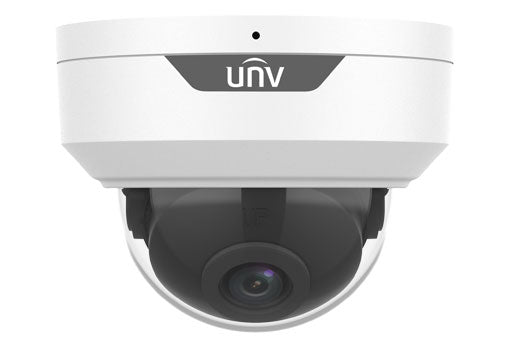

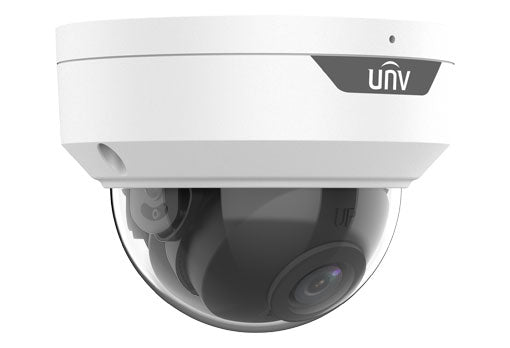

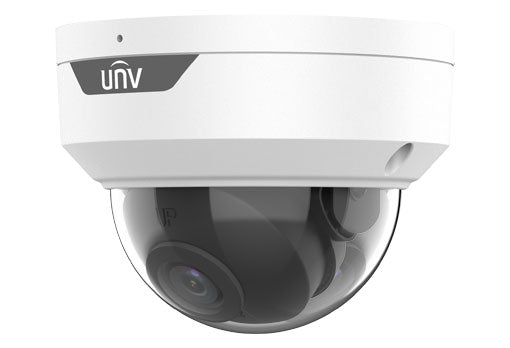

UNV Vandal Dome Camera - 2MP (1920 x 1080 resolution) | 2.8mm Lens | 2-Way Audio


UNV's 2MP vandal dome uses your home or business wireless network and only requires you connect it to power using a 12VDC power supply.  Once you have connected it to your wifi you can then either link it to your NVR or use a microSD for local storage.  It is compatible with the EZView app for remote access so you can see what's going on when you are away.

Key Features:

  • Smart IR LEDs provide up to 30m (98ft) of illumination
  • WiFi connection allows quick installation and even relocation if needed
  • Supports microSD cards onboard up to 128GB
  • 2MP max resolution (1920*1080), up to 30fps
  • ONVIF compatible
  • IP67 Waterproof Rated for Outdoor Use & IK10 Vandal Resistance Rating




wifi camera
This camera supports either wireless or wired configuration.  Wireless works off your existing WiFi to quickly connect to your network.  It only requires a power cable to be connected.
audio support microphone camera
With a built-in microphone it allows you to remotely listen to audio or even record it to the NVR.
wide angle lens
The wide angle lens used on this camera allows it to have an amazing 101° field of view, making it great for covering large areas
ezview remote viewing app
Using the EZView app will allow you to view your cameras, get alerts if the camera sees something, or playback video all on the go.
ethernet wired connection Don't have WiFi or would rather have a hardwired connection?  No problem, this camera can connect using ethernet to your home or SOHO network.
easy installation

You can use this camera standalone or with an existing NVR making it versatile and also very easy to install since you are not required to do extra steps that you may not need depending on your project.



Accessories:



TR-JB03-G-IN

Junction Box

TR-JB07-WM03-G-IN

Deluxe Wall Arm Bracket

TR-WM03-D-IN

Standard Wall Arm Bracket

BACKBOX

WALLARM DELUXE

WALLARM


TR-CM24-IN

Pendant Mount Adapter

Used in conjunction with TR-JB03-G-IN

TR-SE24-IN

Pendant Mount Extension

Used in conjunction with TR-CM24-IN

TR-SE24-A-IN

Pendant Mount Long Extension

Used in conjunction with TR-CM24-IN

pendant mount

pendant extension

pendant extension




DOCUMENTATION
TypeDescriptionVersionLink
Spec SheetPrintable specification sheet showing all technical features of the camera Download
User ManualUser manual for Uniview IP Camerasv3.00Download
Camera Install GuideHow to guide covering the physical installation of Uniview camerasv1.00Download
WINDOWS SOFTWARE
TypeDescriptionVersionLink
EZToolsEZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation.R1122.2.6.1Download
EZStationVMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRsB1130.3.12.1Download
EZPlayerEZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file typesB1111.1.6.0Download
MAC SOFTWARE
TypeDescriptionVersionLink
EZStationVMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRsB1113.3.10.1Download
EZStation BETAVMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs (Try this if you have problems with the official release above)B1113.3.10.0.L02Download



 IPC322LB-AF28WK-G
Camera
Sensor1/2.9", progressive scan , 2.0 megapixel, CMOS
Min. IlluminationColour: 0.01Lux (F2.0, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1~1/100000 s
Adjustment anglePan: 0°~352°, Tilt: 0°~70° , Rotate: 0°~350°
S/N>52dB
WDRDWDR
Lens
Lens Type2.8mm @2.0, Fixed-focal
Lens MountM12
Angle of view(H)101.1°
Angle of View (V)55.0°
Angle of View (O)111.0°
DORI
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm45.018.09.04.5
Illuminator
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~6 Mbps
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image SettingImage rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction2D/3D DNR
Smart IRSupported
FlipNormal/Vertical/Horizontal/180°
DewarpingN/A
HLCSupported
BLCSupported
DefogDigital Defog
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 128GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API , SDK
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Wi-Fi
Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz ~ 2.4835 GHz
Wireless RangeUp to 120 m (The performance varies based on actual environment)
Channel Bandwidth20 MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps(Typical)
Transmission Rate802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Network1 * RJ45 10M/100M Base-TX Ethernet
Built-in MicSupported
Certification
EMCFCC: FCC Part 15
SafetyCE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General
PowerDC 12V±25%
Power consumption: Max 4.0W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Φ109 x 83 mm (Ø4.29” x 3.3”)
Weight0.32 kg (0.71 lb)
MaterialMetal + Plastic
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection4KV
Reset ButtonSupported
Ingress ProtectionIngression protection: IP67
Vandal resistant: IK10
