Network Switch | 24+4 Ports | Gigabit | PoE | 370W

$475.00 MAP
WI-PCMS328GF
Wi-Tek
-
+
Add to Wishlist
Network Switch | 8+2 Ports | L2 Gigabit | Dual Mode PoE | 150W

Network Switch | 8+2 Ports | L2 Gigabit | Dual Mode PoE | 150W

Network Switch | 8+2 Ports | Gigabit | PoE | 140W

Network Switch | 8+2 Ports | Gigabit | PoE | 140W

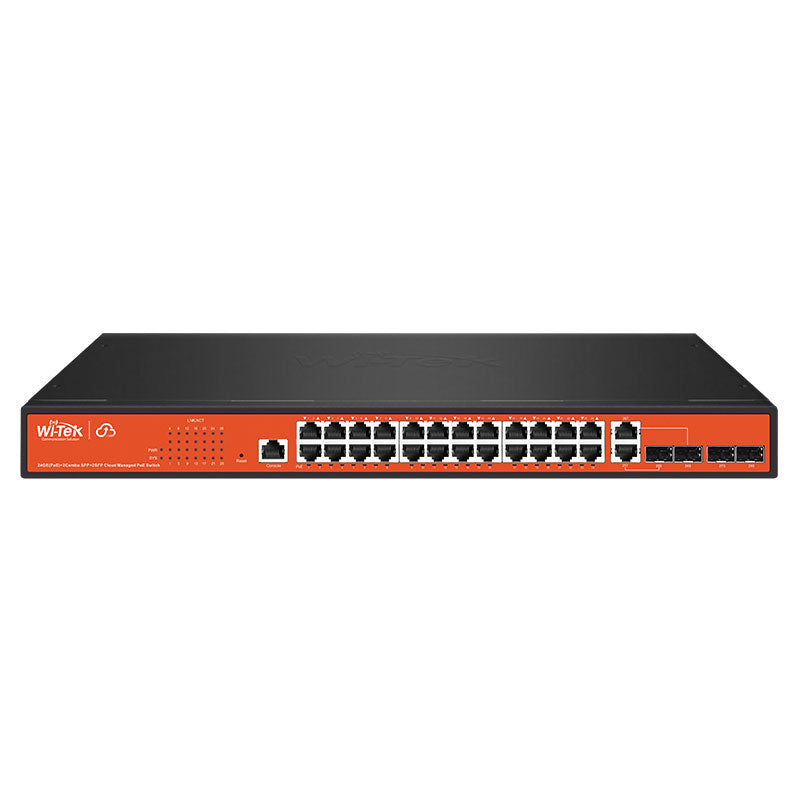

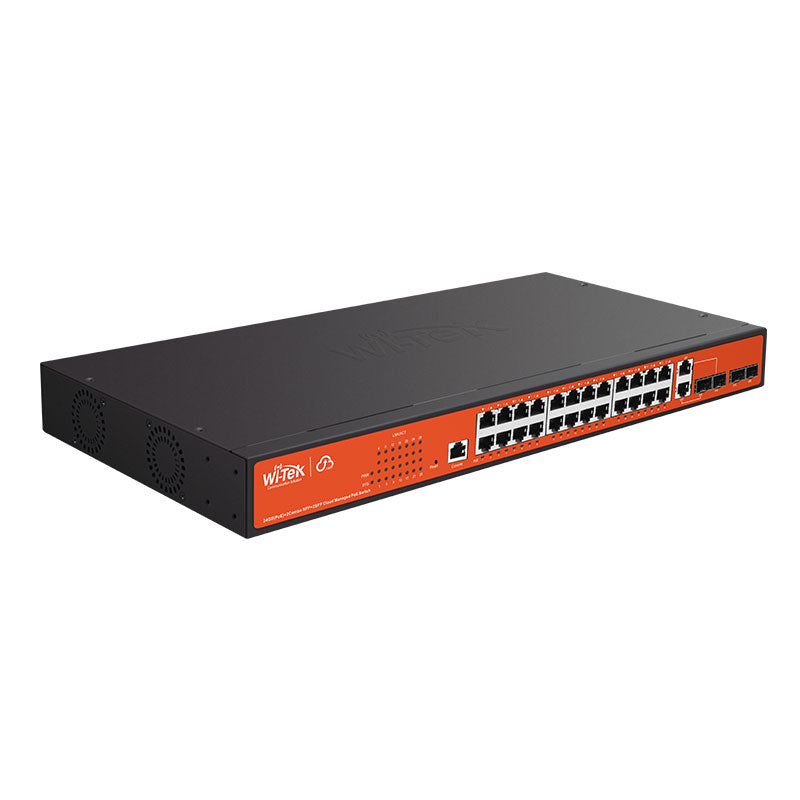

WiTek Cloud Switch, 24 Port PoE Switch - 370W

  • 24 Gigabit PoE ports, 2 Combo Gigabit RJ45/SFP, 2 Gigabit SFP Slots

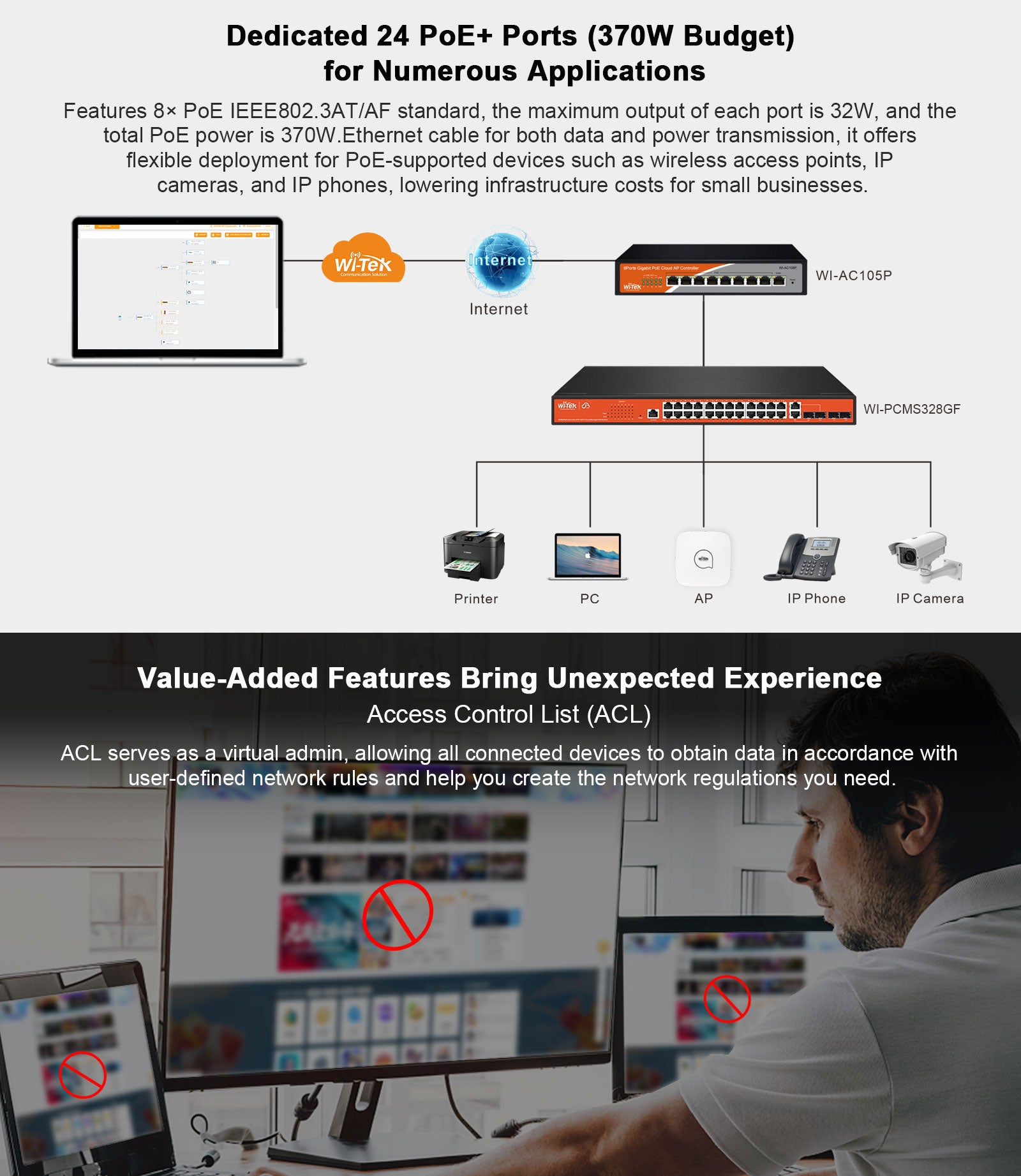

  • 24x 802.3af/at PoE+ ports with a total power supply of 370W
  • Support cloud management, easy to maintain and manage
  • Support IGMP Snooping, Link Aggregation, Loop Prevention
  • QoS and IGMP snooping function optimize voice, video applications
  • Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities

Wi-Tek Cloud Switch provides a more efficient, simple, secure and easy-to-use remote management method. Supports intelligent deployment, automatic configuration of networking, abnormal alarms and other functions all without the need for professional IT operation and maintenance personnel. It's easy to learn and operate.

It also supports flexible 802.1Q VLAN, port aggregation, QoS, & bandwidth control making them ideal for small and medium businesses.

Reliability

Supports STP/ RSTP/ MSTP Layer 2 protection technology to ensure the stability of the local area network through the implementation of a backup connection. If the working network line fails, the backup path automatically provides an alternate connection so that the local network stays online. Network administrators can effectively suppresses broadcast storms through IGMP snooping technology.

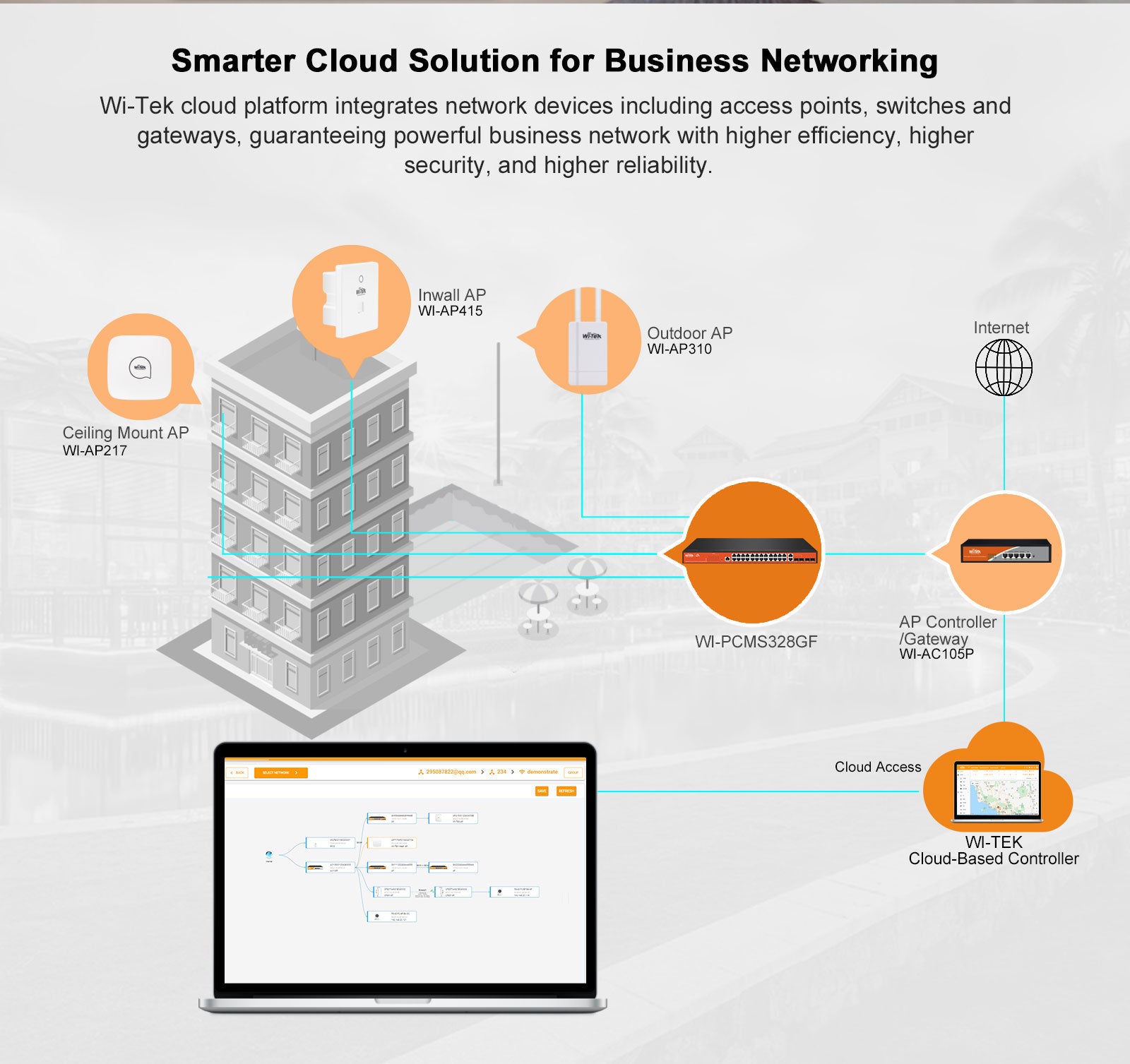

Cloud Platform Remote Management

This switch not only supports management via a web interface and CLI management, but it also supports Wi-Tek Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot remotely.

Implements PoE protective functions to ensure the safety of your powered devices

  • Short-circuit protection:
  • When the line is short-circuited, the switch automatically detects that the current on the line exceeds the standard, automatically stops power supply to the powered equipment.
  • Overload protection:
  • When the switch detects that the output power of the powered device exceeds the maximum power available, it will automatically stop supplying power to the powered device.
  • Over-voltage protection:
  • The switch has an over-voltage protection circuit on each port. When the instantaneous voltage is too large, the output voltage of the port is clamped at 48V, thus protecting the safety of the PoE switch
DOCUMENTATION
Type Description Version Link
Specification Sheet Printable specification sheet for Wi-Tek product V2.0 Download
CLI User Guide Command Line Interface Cloud Switch Guide Download



Hardware Specifications
Hardware Version V1
Interface

24x10/100/1000Mbps RJ45 Ports

2xGigabit Combo ports

2xGigabit SFP Slots

1xConsole Port

Port Standard

IEEE 802.3 i:10BASE-T Ethernet;

IEEE 802.3 u:100BASE-X Fast Ethernet;

IEEE 802.3ab:1000BASE-T Gigabit Ethernet;

IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber)

PoEPoE Standard802.3af/at
PoE Ports24 up to 32W
PoE Power Budget370W

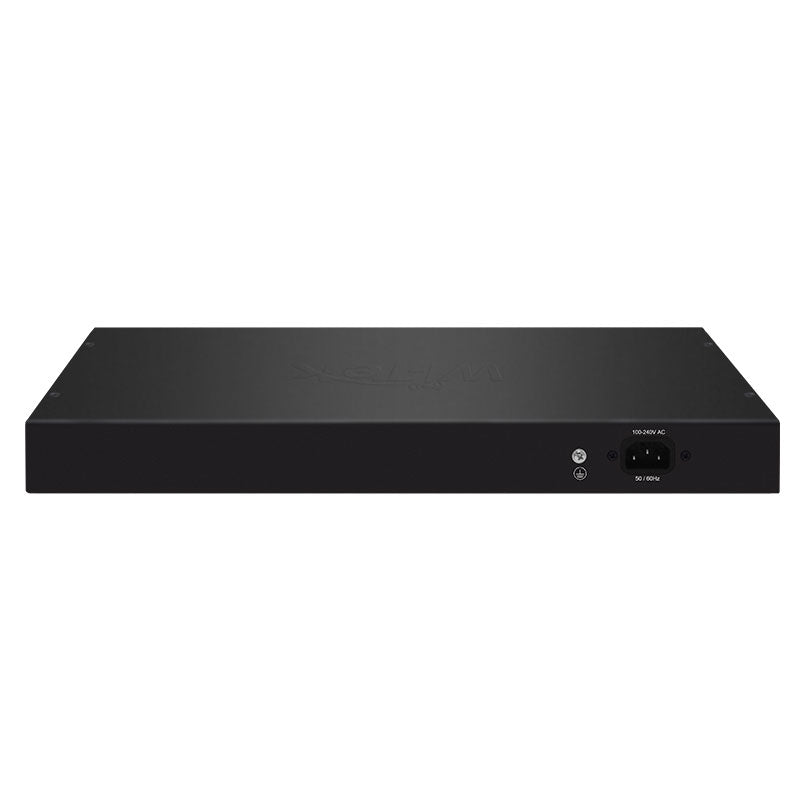

Power Supply100-240 V AC~50/60 Hz
Switching Capacity 56Gbps
Packet Forwarding Rate41.66Mpps
Jumbo Frame9KB
MAC Address Table8K
Dimensions ( W x D x H )440*207*44mm
Fan Quantity2 Fan
Protection LevelCommon Mode ± 6KV, Differential Mode ± 4KV
Electrostatic StandardContact 6KV Air 8KV
Transmission ModeStore— Forward
InstallationRack- Mounted
Software Features
Spanning TreeIEEE  802.1D - STP
IEEE  802.1w - RSTP
IEEE  802.1s - MSTP
BPDU Guard
STP Root Guard
Loop Detection
VLANManagement VLAN
Private VLAN
Voice VLAN
Monitor VLAN
Q- in-Q
Protocol- Based VLAN
MAC- Based VLAN
PortLACP
Static
EEE
Jumbo Frame
Error- Disable
 Port mirroring( One-to-One Many-to-One Tx/Rx/Both)
Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group)
SecurityPort Isolation
IEEE802.1x AAA
ACL support L2+/L3/ L4  IPv6 ACL
Dynamic ARP Protection
Broadcast Storm
RADIUS/TACACS+
RADIUS Authentication ( RFC2138)
SSH v1.5/v2 .0
Anti- DDoS Attack
DHCP Snooping
QOSIpv4 QoS (QCEs)
Ipv6 QoS (QCEs)
Priority Algorithm(WRR ,Absolute Priority, DSCP & CS)
Class of Service(Port- Based ,802.1p CoS  DSCP  IP Priority, TCP/ UDP IPv4/ IPv6 )
Bandwidth(Input /Output)
L2 M ulticastIGMP  Snooping v1/v2/v3
MLDS nooping v1/v2
MVR
IPV6Ipv6/IPv4
Ipv6 Web/SSL
Ipv6 SNTP
Ipv6 Telnet/SSH
Ipv6 Ping/Traceroute
Ipv6 TFTP
Ipv6 RADIUS/TACACS+
Ipv6 SNMP
ManagementSNMP (v1 , v2c , v3 )
RMON ( 1 , 2 , 3 & 9 )
Firmware Upgrade
Configuration Export/import
DHCP (Option 82, Option 66, Option 67)
System Log Supports Event/Error Log
Manage Access Control( Console Port , SNMP, HTTP/ HTTPS , Telnet)
LLDP ( IEEE802.1AB)
LLDP- MED
UDLD
DNS Client
Traceroute
Ping
DDMI
NTP/ SNTP ( RFC2030)
Advanced FeaturesONVIF (ONVIF Detection , ONVIF Server(NLM) )
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Automatic Device Discovery
Support Cloud Management
Support Remote Management
Support Cloud VLAN Configuration
Support Topology Display
Support Cloud Control Port Configuration
Others
CertficationCE , FCC , RoHS
Package ContentsGigabit Switch
Power Cord
Quick Installation Guide
Rubber Feet
EnvironmentOperating Temperature: 0–40 ℃
Storage Temperature: -40– 70 ℃
Operating Humidity: 10– 90% RH non-condensing
Storage Humidity: 5– 90% RH non-condensing
