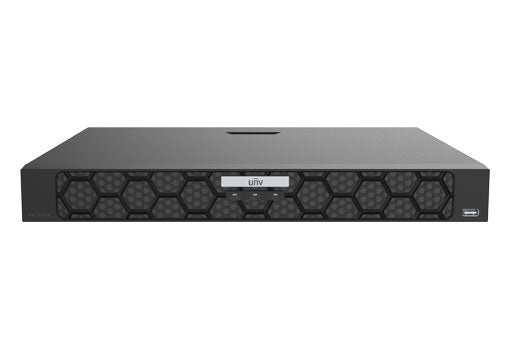

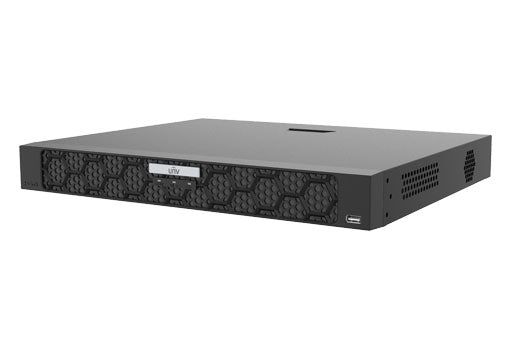

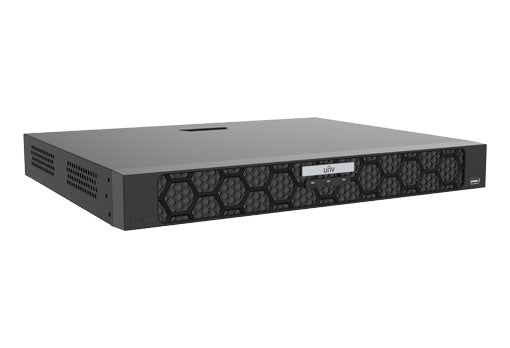

NVR Network Video Recorder | 16 Ch | 2x SATA | 16x PoE | SKU: NVR502-16B-P16
 |
 |
 |
 |
NDAA Compliant NVR |
16-Ports PoE Camera Input
|
H.265/H.264 Video Compression
|
Supports LPR, VCA, & Smart Features
|
UNV NDAA Compliant NVR - 16 Channels | Ultra H.265 Support | PoE Inputs
The NVR502 series network video recorders (NVRs) are fully NDAA compliant and support many great features. The systems are plug and play when using UNV cameras making installation a breeze and they support cloud-based camera update feature ensuring your cameras are installed with the latest security updates with a few simple clicks. Remote access is also cloud based to make connecting your smart phone using the EZVIEW app as easy as possible - no opening ports in the customer's firewall. The interface is sleek and simple making the operation of the recorder an intuitive process for beginners and offering all the features you need as an installer.
B-Series NVRs:
- HDMI and VGA independent outputs
- Double playback decoding ability from previous models
- 8 Channel SIP / VCA support
- ANR technology to enhance the storage reliability when the network is disconnected
- Higher network bandwidth support (320Mbps vs 160Mbps)
- Improved Fisheye camera dewarping
- ANPR license plate recognition camera support
 |
National Defense Authorization Act or NDAA was modified to restrict the "use" of certain brands, and their OEMs, when dealing with the federal government and went into full effect August 2020. Use of restricted products affects government contractors even on their own security systems on their private property. Recently, the FCC has followed suit and also banned those same manufacturers. This product is made with 100% NDAA compliant parts. |
 |
This NVR has 16-ports of integrated PoE (Power-over-Ethernet), allowing a single Cat5/6 cable for the power delivery and network connection on the connected IP cameras. Uniview IP cameras are designed to be Plug-N-Play when connected to this NVR. |
 |
Ultra H.265 technology is designed to use less hard drive space and bandwidth. Powered by U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction. It is not only a compression technology, but a cutting edge end-to-end solution. |
 |
Supports VCA and Smart features such as line-crossing, intrusion detection, human/vehicle detection, and ultra motion detection. These modes are designed to eliminate false alerts to allow you to stay informed by true push-notifications. Supports LPR cameras and fisheye dewarping. |
 |
Extreme decoding ability means being able to playback more channels at one time during surveillance footage review. 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 |
 |
Supports audio recording when connected to Uniview cameras with built-in microphones. Uniview makes it easy to either enable or disable audio in the camera setup menu |
| DOCUMENTATION | |||
| Type | Description | Version | Link |
| Spec Sheet | Printable specification sheet showing all technical features of the NVR | Download | |
| User Manual | User manual for Uniview NVRs | v3.00 | Download |
| Quick Start Guide | NVR Quick Start Guide | v1.04 | Download |
| WINDOWS SOFTWARE | |||
| Type | Description | Version | Link |
| EZTools | EZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation. | R1122.2.6.1 | Download |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | B1130.3.12.1 | Download |
| EZPlayer | EZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file types | B1111.1.6.0 | Download |
| MAC SOFTWARE | |||
| Type | Description | Version | Link |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | B1113.3.10.1 | Download |
| EZStation BETA | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs (Try this if you have problems with the official release above) | B1113.3.10.0.L02 | Download |
| Model | NVR502-08B-P8 | NVR502-16B-P16 | NVR502-32B-P16 | ||||
| Video/Audio Input | |||||||
| IP Video Input | 8-ch | 16-ch | 32-ch | ||||
| Audio Input | 1-ch, RCA | ||||||
| Network | |||||||
| Incoming bandwidth | 320Mbps | ||||||
| Outgoing bandwidth | 160Mbps | ||||||
| Remote Users | 128 | ||||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 | ||||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||||||
| Video/Audio Output | |||||||
| HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 | ||||||
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||
| Audio Output | 1-ch, RCA | ||||||
| Two-way Audio | 1-ch, RCA(Using the audio input and output) | ||||||
| Audio Compression | G.711A, G.711U | ||||||
| Synchronous Playback | 8-ch | 16-ch | 16-ch | ||||
| Liveview display | 1/4/6/8/9 | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/32 | ||||
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | ||||
| Snapshot | |||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | ||||||
| Decoding | |||||||
| Decoding format | Ultra 265/H.265/H.264 | ||||||
| Live view/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 | ||||||
| Hard Disk | |||||||
| SATA | 2 SATA interfaces | ||||||
| Capacity | Up to 10TB for each disk | ||||||
| Smart | |||||||
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring | ||||||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | ||||||
| People Counting | People Flow Counting, Crowd Density Monitoring | ||||||
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera | Total 8-ch | ||||||
| General Alarm | |||||||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | ||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||
| External Interface | |||||||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||||||
| USB Interface | Front: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||||||
| RS232 | NA | ||||||
| RS485 | 1 | ||||||
| Alarm In | 8-ch | ||||||
| Alarm Out | 2-ch | ||||||
| PoE | |||||||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |||||
| Max Power | Max 30W for single port Max 130W in total | Max 30W for single port Max 240W in total | |||||
| Supported Standard | IEEE 802.3af/at | ||||||
| General | |||||||
| Power Supply | 100~240V AC Power Consumption: ≤ 20W (without HDD) | ||||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||
| Dimensions (W×D×H) | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") | ||||||
| Weight (without HDD) | ≤ 2.6Kg (5.73lb) | ||||||
| Certification | |||||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | ||||||
| FCC | Part15 Subpart B | ||||||
