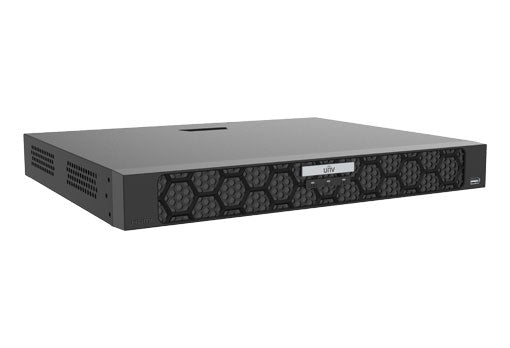

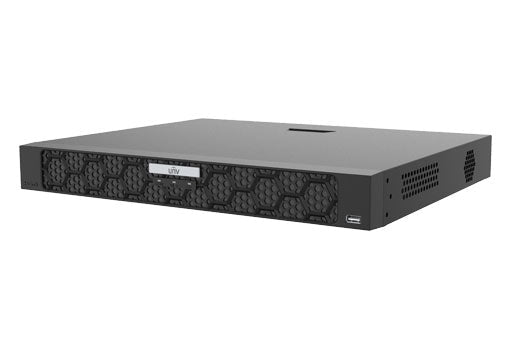

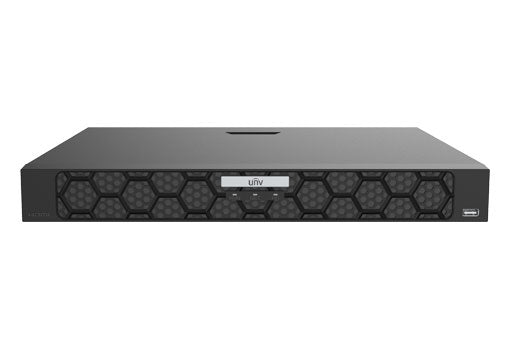

NVR Network Video Recorder | 16 Ch | 2x SATA | 16x PoE | SKU: NVR502-16B-P16-IQ

$1,289.00 $1,039.00 MAP
NVR502-16B-P16-IQ
UNV
-
+
Add to Wishlist
NVR Network Video Recorder | 16 Ch | 2x SATA | 16x PoE | SKU: NVR502-16B-P16

NVR Network Video Recorder | 16 Ch | 2x SATA | 16x PoE | SKU: NVR502-16B-P16

NVR Network Video Recorder | 32 Ch | 2x SATA | 16x PoE | SKU: NVR502-32B-P16

NVR Network Video Recorder | 32 Ch | 2x SATA | 16x PoE | SKU: NVR502-32B-P16


NDAA Icon
PoE Icon
H.265 Icon
Smart Icon

NDAA Compliant NVR

16-Ports PoE Camera Input

H.265/H.264 Video Compression

Supports Face Recognition, LPR, VCA, & Smart Features


UNV NDAA Compliant NVR - 16 Channels | Ultra H.265 Support | PoE Inputs


The NVR502 series network video recorders (NVRs) are fully NDAA compliant and support many great features.  The systems are plug and play when using UNV cameras making installation a breeze and they support cloud-based camera update feature ensuring your cameras are installed with the latest security updates with a few simple clicks.  Remote access is also cloud based to make connecting your smart phone using the EZVIEW app as easy as possible - no opening ports in the customer's firewall.  The interface is sleek and simple making the operation of the recorder an intuitive process for beginners and offering all the features you need as an installer.

IQ B-Series NVRs:

  • Face recognition capable with face detection enabled cameras
  • HDMI and VGA independent outputs
  • Double playback decoding ability from previous models
  • 16MP max recording resolution
  • 4 Channel SIP / VCA support
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Higher network bandwidth support (320Mbps vs 160Mbps)
  • Improved Fisheye camera dewarping
  • ANPR license plate recognition camera support
  • Cloud firmware upgrade support




NDAA Icon
National Defense Authorization Act or NDAA was modified to restrict the "use" of certain brands, and their OEMs, when dealing with the federal government and went into full effect August 2020.  Use of restricted products affects government contractors even on their own security systems on their private property.   Recently, the FCC has followed suit and also banned those same manufacturers.  This product is made with 100% NDAA compliant parts.
PoE Icon
This NVR has 16-ports of integrated PoE (Power-over-Ethernet), allowing a single Cat5/6 cable for the power delivery and network connection on the connected IP cameras.  Uniview IP cameras are designed to be Plug-N-Play when connected to this NVR.
H.265 Icon
Ultra H.265 technology is designed to use less hard drive space and bandwidth. Powered by U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction. It is not only a compression technology, but a cutting edge end-to-end solution.
Smart Icon

-IQ Models support face recognition mode when used with face detection cameras such as Tri-Guard and ColorHunter

Supports VCA and Smart features such as line-crossing, intrusion detection, human/vehicle detection, and ultra motion detection.  These modes are designed to eliminate false alerts to allow you to stay informed by true push-notifications.  Supports LPR cameras and fisheye dewarping.

Decode Icon

Extreme decoding ability means being able to playback more channels at one time during surveillance footage review.

Smart Off:2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30

Smart On:2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30

Microphone Icon

Supports audio recording when connected to Uniview cameras with built-in microphones.  Uniview makes it easy to either enable or disable audio in the camera setup menu



DOCUMENTATION
Type Description Version Link
Specification Sheet Printable specification sheet showing all technical features of the IP Camera Download
User Manual User manual for Uniview NVR v3.02 Download
WINDOWS SOFTWARE
Type Description Location Link
EZStation VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs Uniview
Download
EZTools EZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation. Uniview Download
EZPlayer EZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file types Uniview Download
MAC SOFTWARE
Type Description Location
Link
EZStation VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs Uniview Download
DecodingDescription
Decoding FormatUltra 265,H.265,H.264
Decoding CapabilityNVR502‑08B‑P8‑IQ:Smart Off:2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30
Smart On:2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30
NVR502‑16B‑P16‑IQ:Smart Off:2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
Smart On:2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30
NVR502‑32B‑P16‑IQ:Smart Off:2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30
Smart On:2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 24 x 720P@30, 32 x D1
Audio CompressionG.711A,G.711U
NetworkDescription
Incoming BandwidthSmart Off:320Mbps
Smart On:160Mbps
Outgoing Bandwidth160Mbps
Remote Users128
ProtocolsTCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;IPV6
Browser(Plugin)Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
Video/Audio InputDescription
IP Video InputNVR502‑08B‑P8‑IQ:8‑ch
NVR502‑16B‑P16‑IQ:16‑ch
NVR502‑32B‑P16‑IQ:32‑ch
RCA Audio Input1‑ch
Video/Audio OutputDescription
HDMI OutputHDMI:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA OutputVGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output1‑ch
Liveview DisplayNVR502‑08B‑P8‑IQ:1/4/6/8/9
NVR502‑16B‑P16‑IQ:1/4/6/8/9/16
NVR502‑32B‑P16‑IQ:1/4/6/8/9/16/25/32
Corridor Mode ScreenNVR502‑08B‑P8‑IQ:3/4/5/7/9
NVR502‑16B‑P16‑IQ:3/4/5/7/9/10/12/16
NVR502‑32B‑P16‑IQ:3/4/5/7/9/10/12/16/32
Two-way AudioDescription
Two-way Audio1‑ch,RCA(Using the audio input and output)
SnapshotDescription
FTP/Schedule/Event Snapshot4‑ch snapshot,up to 4K resolution
RecordingDescription
Recording Resolution16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local16‑ch
SmartDescription
VCA Detection by IPCVehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring
Smart by NVRSmart Intrusion Prevention (SIP);Ultra Motion Detection(UMD)
VCA SearchMotor Vehicle Search;Non‑Motor Vehicle Search; General Search;People Counting Report;Heat Map
Smart by IPCAll channels (up to 8 images/s in total)
Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring
Search by ImageSupport
Vehicle Picture LibraryUp to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total
SIP by NVR4‑ch
UMD by NVR8‑ch
Capacity of Snapshot Records2 millions records for vehicle snapshot;3 millions records for SIP;2 millions records for video Metadata
AlarmDescription
General AlarmDefocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
Alert AlarmIP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded
GUI LanguageDescription
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard DiskDescription
SATA2 SATA Interfaces
CapacityUp to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
Disk GroupSupport
Redundant StorageSupport
Disk Array TypeRAID 1
External InterfaceDescription
Network Interface1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USBFront panel: 1 x USB2.0;Rear panel: 1 x USB2.0, 1 x USB3.0
RS4851
RS232N/A
Alarm In8‑ch
Alarm Out2‑ch
Power SupplyAC 100~240V
Power SwitchSupport
PoEDescription
InterfaceNVR502‑08B‑P8‑IQ:8 RJ45 10M/100M self‑adaptive Ethernet Interface
NVR502‑16B‑P16‑IQ/NVR502‑32B‑P16‑IQ:16 RJ45 10M/100M self‑adaptive Ethernet Interface
Max PowerNVR502‑08B‑P8‑IQ:Max 30W for single port,Max 130W in total
NVR502‑16B‑P16‑IQ/NVR502‑32B‑P16‑IQ:Max 30W for single port,Max 240W in total
Supported StandardIEEE 802.3at,IEEE 802.3af
Working EnvironmentDescription
Working Temperature‑10°C ~ + 50°C (+14°F ~ +122°F)
Working Humidity≤ 90% RH (non‑condensing)
Power Consumption (without HDD)≤ 12W
DimensionsDescription
Weight (without HDD)≤ 2.7Kg (6.0lb)
Height1U
Dimensions380mm × 322mm × 53mm (15.0"×12.7"×2.1")
CertificationDescription
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCCPart15 Subpart B
