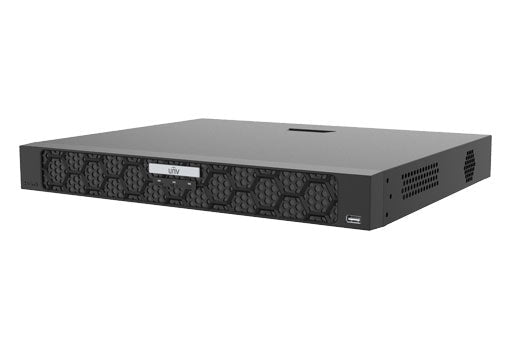

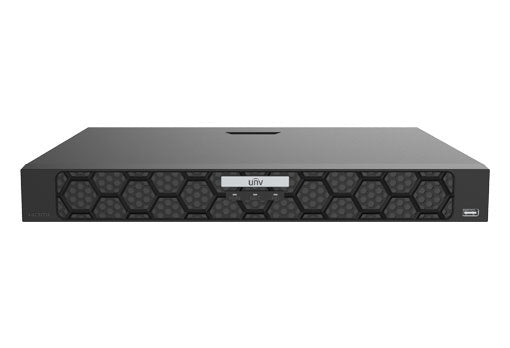

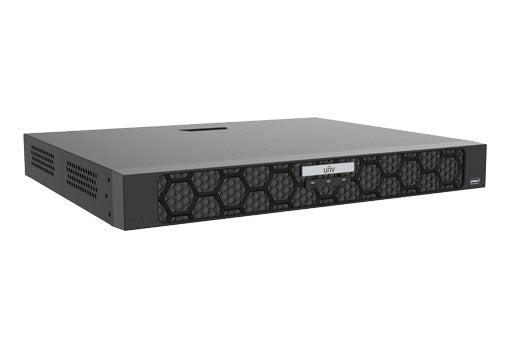

NVR Network Video Recorder | 8 Ch | 2x SATA | 8x PoE | SKU: NVR502-08B-P8-IQ
 |
 |
 |
 |
NDAA Compliant NVR |
8-Ports PoE Camera Input
|
H.265/H.264 Video Compression
|
Supports Face Recognition, LPR, VCA, & Smart Features
|
UNV NDAA Compliant NVR - 8 Channels | Ultra H.265 Support | PoE Inputs
The NVR502 series network video recorders (NVRs) are fully NDAA compliant and support many great features. The systems are plug and play when using UNV cameras making installation a breeze and they support cloud-based camera update feature ensuring your cameras are installed with the latest security updates with a few simple clicks. Remote access is also cloud based to make connecting your smart phone using the EZVIEW app as easy as possible - no opening ports in the customer's firewall. The interface is sleek and simple making the operation of the recorder an intuitive process for beginners and offering all the features you need as an installer.
IQ B-Series NVRs:
- Face recognition capable with face detection enabled cameras
- HDMI and VGA independent outputs
- Double playback decoding ability from previous models
- 16MP max recording resolution
- 4 Channel SIP / VCA support
- ANR technology to enhance the storage reliability when the network is disconnected
- Higher network bandwidth support (320Mbps vs 160Mbps)
- Improved Fisheye camera dewarping
- ANPR license plate recognition camera support
- Cloud firmware upgrade support
 |
National Defense Authorization Act or NDAA was modified to restrict the "use" of certain brands, and their OEMs, when dealing with the federal government and went into full effect August 2020. Use of restricted products affects government contractors even on their own security systems on their private property. Recently, the FCC has followed suit and also banned those same manufacturers. This product is made with 100% NDAA compliant parts. |
 |
This NVR has 8-ports of integrated PoE (Power-over-Ethernet), allowing a single Cat5/6 cable for the power delivery and network connection on the connected IP cameras. Uniview IP cameras are designed to be Plug-N-Play when connected to this NVR. |
 |
Ultra H.265 technology is designed to use less hard drive space and bandwidth. Powered by U-code technology which was exclusively developed by Uniview to have excellent bitrate control and bandwidth reduction. It is not only a compression technology, but a cutting edge end-to-end solution. |
 |
-IQ Models support face recognition mode when used with face detection cameras such as Tri-Guard and ColorHunter Supports VCA and Smart features such as line-crossing, intrusion detection, human/vehicle detection, and ultra motion detection. These modes are designed to eliminate false alerts to allow you to stay informed by true push-notifications. Supports LPR cameras and fisheye dewarping. |
 |
Extreme decoding ability means being able to playback more channels at one time during surveillance footage review. Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30 |
 |
Supports audio recording when connected to Uniview cameras with built-in microphones. Uniview makes it easy to either enable or disable audio in the camera setup menu |
| DOCUMENTATION | |||
| Type | Description | Version | Link |
| Spec Sheet | Printable specification sheet showing all technical features of the NVR | Download | |
| User Manual | User manual for Uniview NVRs | v3.00 | Download |
| Quick Start Guide | NVR Quick Start Guide | v1.04 | Download |
| WINDOWS SOFTWARE | |||
| Type | Description | Version | Link |
| EZTools | EZTools 2.0 is a tool kit for device management, channel management, device upgrade and maintenance, recording time and capacity calculation. | R1122.2.6.1 | Download |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | B1130.3.12.1 | Download |
| EZPlayer | EZPlayer is a media player tools for local recordings, supporting both .ts and .mp4 file types | B1111.1.6.0 | Download |
| MAC SOFTWARE | |||
| Type | Description | Version | Link |
| EZStation | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs | B1113.3.10.1 | Download |
| EZStation BETA | VMS (Video Management Software) allows unified management of Uniview's IP Cameras & NVRs (Try this if you have problems with the official release above) | B1113.3.10.0.L02 | Download |
| Decoding | Description |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | NVR502‑08B‑P8‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30 NVR502‑16B‑P16‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30 NVR502‑32B‑P16‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 24 x 720P@30, 32 x D1 |
| Audio Compression | G.711A,G.711U |
| Network | Description |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;IPV6 |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Video/Audio Input | Description |
| IP Video Input | NVR502‑08B‑P8‑IQ:8‑ch NVR502‑16B‑P16‑IQ:16‑ch NVR502‑32B‑P16‑IQ:32‑ch |
| RCA Audio Input | 1‑ch |
| Video/Audio Output | Description |
| HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1‑ch |
| Liveview Display | NVR502‑08B‑P8‑IQ:1/4/6/8/9 NVR502‑16B‑P16‑IQ:1/4/6/8/9/16 NVR502‑32B‑P16‑IQ:1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | NVR502‑08B‑P8‑IQ:3/4/5/7/9 NVR502‑16B‑P16‑IQ:3/4/5/7/9/10/12/16 NVR502‑32B‑P16‑IQ:3/4/5/7/9/10/12/16/32 |
| Two-way Audio | Description |
| Two-way Audio | 1‑ch,RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/Event Snapshot | 4‑ch snapshot,up to 4K resolution |
| Recording | Description |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16‑ch |
| Smart | Description |
| VCA Detection by IPC | Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| Smart by NVR | Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD) |
| VCA Search | Motor Vehicle Search;Non‑Motor Vehicle Search; General Search;People Counting Report;Heat Map |
| Smart by IPC | All channels (up to 8 images/s in total) Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring |
| Search by Image | Support |
| Vehicle Picture Library | Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total |
| SIP by NVR | 4‑ch |
| UMD by NVR | 8‑ch |
| Capacity of Snapshot Records | 2 millions records for vehicle snapshot;3 millions records for SIP;2 millions records for video Metadata |
| Alarm | Description |
| General Alarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| Alert Alarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded |
| GUI Language | Description |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | Description |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1 |
| External Interface | Description |
| Network Interface | 1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 1 x USB2.0;Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 8‑ch |
| Alarm Out | 2‑ch |
| Power Supply | AC 100~240V |
| Power Switch | Support |
| PoE | Description |
| Interface | NVR502‑08B‑P8‑IQ:8 RJ45 10M/100M self‑adaptive Ethernet Interface NVR502‑16B‑P16‑IQ/NVR502‑32B‑P16‑IQ:16 RJ45 10M/100M self‑adaptive Ethernet Interface |
| Max Power | NVR502‑08B‑P8‑IQ:Max 30W for single port,Max 130W in total NVR502‑16B‑P16‑IQ/NVR502‑32B‑P16‑IQ:Max 30W for single port,Max 240W in total |
| Supported Standard | IEEE 802.3at,IEEE 802.3af |
| Working Environment | Description |
| Working Temperature | ‑10°C ~ + 50°C (+14°F ~ +122°F) |
| Working Humidity | ≤ 90% RH (non‑condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | Description |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Height | 1U |
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
